Description

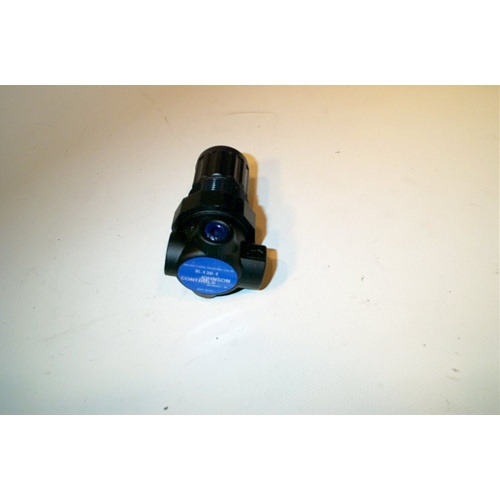

The Johnson Controls R-130-1 is a compact, reliable air pressure reducing valve engineered for pneumatic control systems in commercial and industrial HVAC applications. It steps down high-pressure supply air to a precise, adjustable output range, protecting downstream components and ensuring consistent system performance.
Key Features
- Main port connection: 1/8″ NPT for easy integration into standard pneumatic piping
- Gage port: 1/8″ NPT for convenient pressure monitoring without additional fittings
- Maximum inlet pressure: 300 Psig — handles high-pressure supply air with confidence
- Adjustable output pressure range: 0 to 50 Psig for versatile downstream control
- Flexible mounting options: inline, panel mounted, or bracket supported to suit a wide range of installation environments
Applications
- Pneumatic HVAC control systems requiring regulated branch-line pressure
- Building automation and DDC pneumatic interfaces
- Panel-mounted air preparation assemblies
- Inline pressure regulation for actuators, dampers, and pneumatic controllers
Specifications
- SKU / Part Number: R-130-1
- Brand: Johnson Controls
- Main Port Connection: 1/8″ NPT
- Gage Port: 1/8″ NPT
- Maximum Inlet Pressure: 300 Psig
- Output Pressure Range: 0 to 50 Psig (adjustable)
- Mounting: Inline, Panel Mounted, or Bracket Supported
The R-130-1’s three mounting configurations make it one of the most installation-friendly pressure reducing valves in the Johnson Controls pneumatic controls lineup. Whether you’re building a new panel assembly or retrofitting an existing system, this valve delivers consistent, dependable pressure regulation right out of the box.
