Description

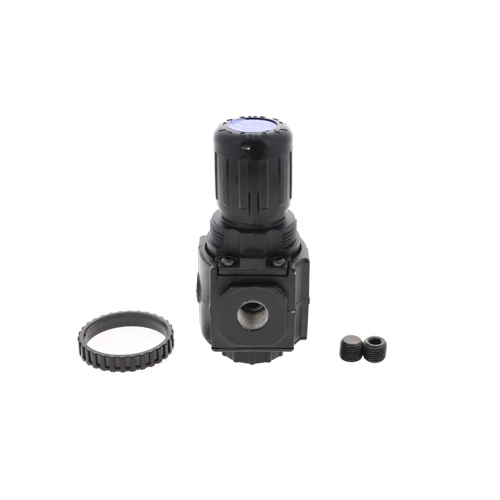

Johnson Controls R-130-15 Air Pressure Reducing Valve Overview
The Johnson Controls R-130-15 is a precision-engineered air pressure reducing valve designed for reliable pressure regulation in commercial and industrial HVAC and pneumatic control systems. With a robust 300 Psig maximum inlet pressure rating and an adjustable output range of 0 to 50 Psig, this valve delivers consistent downstream pressure control to protect sensitive equipment and maintain system efficiency.
Key Features
- 3/8″ NPT main port connection for straightforward inline installation
- 1/4″ NPT gage port for easy pressure monitoring and instrumentation hookup
- 300 Psig maximum inlet pressure rating for high-pressure supply compatibility
- Adjustable output pressure range of 0 to 50 Psig to suit a wide variety of downstream requirements
- Bracket-supported mounting for secure, vibration-resistant installation in panel or wall applications
- Durable construction built to Johnson Controls’ exacting quality standards
Applications
The R-130-15 is ideally suited for use in pneumatic control systems, building automation panels, and HVAC air supply circuits where precise pressure reduction and regulation are required. The bracket-supported mounting configuration makes it easy to integrate into control enclosures or mechanical rooms.
Specifications
- Brand: Johnson Controls
- Model / SKU: R-130-15
- Main Port Connection: 3/8″ NPT
- Gage Port Connection: 1/4″ NPT
- Maximum Inlet Pressure: 300 Psig
- Output Pressure Range: 0 to 50 Psig
- Mounting Style: Bracket Supported
