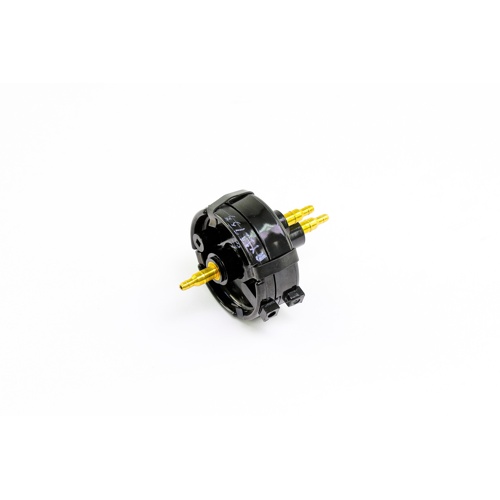

Johnson Controls R-2080-1 Pneumatic Booster Relay
The Johnson Controls R-2080-1 is a pneumatic booster relay engineered to amplify airflow capacity in pneumatic control systems while maintaining a precise 1:1 signal ratio. Designed for use in building automation and HVAC pneumatic control circuits, this relay ensures fast, accurate signal transmission without distortion — making it an ideal solution for applications where long tubing runs or high-volume actuators demand increased air volume at the same control pressure.
Key Features
- 1:1 ratio booster relay — faithfully reproduces input signal pressure at the output
- Barbed connections compatible with 5/32″ or 1/4″ OD pneumatic tubing
- Maximum air consumption of 10 SCIM (Standard Cubic Inches per Minute) for efficient operation
- Maximum supply pressure rating of 25 Psig for reliable performance in standard pneumatic systems
- Compact design for easy installation in pneumatic control panels or field enclosures
- Suitable for use with Johnson Controls and compatible pneumatic control systems
Applications
- Pneumatic HVAC control systems requiring volume boosting
- Building automation systems with extended tubing runs
- Pneumatic actuator circuits demanding increased airflow capacity
- Commercial and industrial pneumatic control panels
Specifications
- SKU: R-2080-1
- Brand: Johnson Controls
- Type: Pneumatic Booster Relay
- Ratio: 1:1
- Connection Type: Barbed
- Compatible Tubing OD: 5/32″ or 1/4″
- Maximum Air Consumption: 10 SCIM
- Maximum Supply Pressure: 25 Psig
