Johnson Controls R-3710-2007 Inline Restrictor Overview

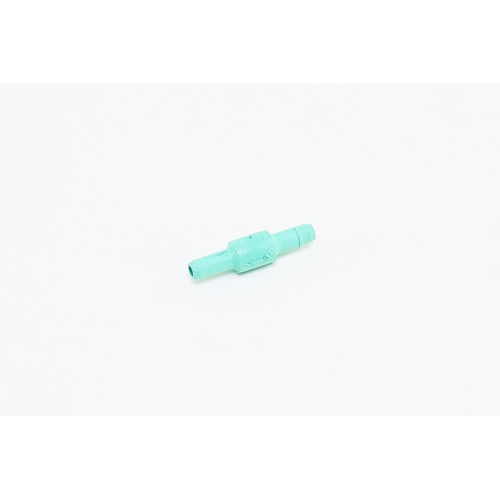

The Johnson Controls R-3710-2007 is a straight coupling inline restrictor engineered for precise flow control in pneumatic tubing systems. Featuring a compact, inline design with barbed fittings sized for 1/4″ OD polytubing, this restrictor delivers reliable, consistent orifice restriction in building automation and HVAC control applications. The distinctive aqua color coding allows for quick visual identification during installation and maintenance.
Key Features
- Straight coupling, inline restrictor design for easy in-line installation
- Barbed fittings compatible with 1/4″ OD polytubing
- .007″ precision-machined orifice for accurate flow restriction
- 25 PSIG maximum operating pressure rating
- Aqua color coding for fast visual identification
- Compact form factor minimizes space requirements in control panels and tubing runs
- Designed for use in pneumatic control systems and building automation applications
Specifications
- SKU: R-3710-2007
- Brand: Johnson Controls
- Type: Inline Restrictor, Straight Coupling
- Fitting Type: Barbed
- Compatible Tubing: 1/4″ OD Polytubing
- Orifice Size: .007″
- Maximum Pressure: 25 PSIG
- Color: Aqua
Applications
- Pneumatic HVAC control systems
- Building automation and DDC pneumatic circuits
- Flow restriction in pneumatic signal lines
- Commercial and industrial control tubing networks
