Description

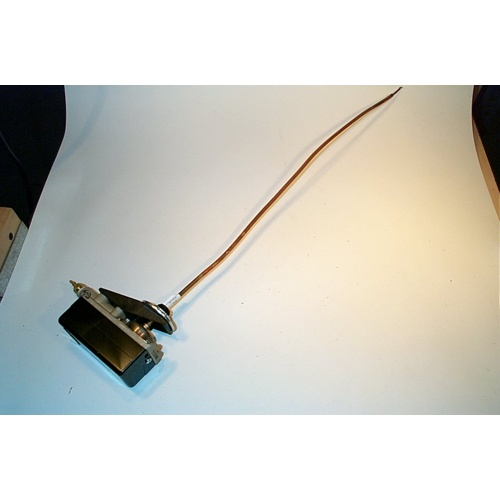

The Johnson Controls T-3610-1002 is a pneumatic low limit thermostat engineered for reliable freeze protection and temperature limiting in unit ventilator applications. Featuring an 18-inch rigid stem element, this thermostat mounts directly to unit ventilators and delivers precise, proportional direct-acting control across a wide operating range.
Key Features
- Proportional direct-acting pneumatic control for accurate, responsive temperature limiting
- 18″ rigid stem element designed for unit ventilator mounting
- Wide element operating range of 0 to 270 degrees for versatile low-limit applications
- Sensitivity range of 0.25 to 0.75 PSI for fine-tuned pneumatic signal output
- 1/8″ NPT barbed fitting compatible with 5/32″ or 1/4″ pneumatic tubing
- Ideal for freeze protection in commercial HVAC and building automation systems
Specifications
- SKU: T-3610-1002
- Brand: Johnson Controls
- Control Type: Pneumatic, Proportional Direct Acting
- Stem Type: Rigid, 18 inches
- Element Operating Range: 0 to 270 Degrees
- Sensitivity Range: 0.25 to 0.75 PSI
- Connection: 1/8″ NPT Barbed Fitting for 5/32″ or 1/4″ tubing
- Application: Unit Ventilator Low Limit Control
Application
The T-3610-1002 is purpose-built for low limit thermostat duty in commercial unit ventilators, protecting heating coils and building spaces from freeze damage. Its pneumatic proportional action integrates seamlessly into existing pneumatic control systems, making it an ideal replacement or upgrade component for building engineers and HVAC technicians managing commercial HVAC infrastructure.
