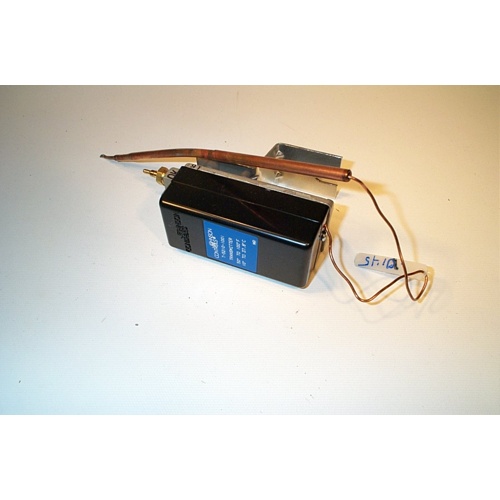

Johnson Controls T-5210-1001 Pneumatic Temperature Transmitter Overview
The Johnson Controls T-5210-1001 is a precision pneumatic temperature transmitter engineered for reliable building automation and HVAC control applications. Featuring a remote bulb and capillary sensing assembly, this transmitter converts sensed temperature into a proportional pneumatic output signal, making it an ideal fit for pneumatic control systems in commercial and industrial environments.
Key Specifications
- Operating Temperature Range: 50°F to 100°F
- Element Temperature Range: -40°F to 230°F
- Capillary Length with Bulb: 5½”
- Output Pressure Range: 3 to 15 Psig
- Air Consumption and Output Flow Capacity: 45 SCIM
Features & Benefits
- Pneumatic output signal (3–15 Psig) integrates seamlessly with standard pneumatic control systems
- Remote bulb and capillary design allows accurate temperature sensing at the point of measurement
- Wide element temperature tolerance (-40°F to 230°F) ensures durability across diverse installation environments
- Compact capillary assembly (5½”) for flexible placement in tight spaces
- 45 SCIM air consumption rating supports efficient pneumatic system operation
- Backed by Johnson Controls’ reputation for quality and reliability in commercial HVAC controls
Typical Applications
- Commercial building HVAC pneumatic control systems
- Air handling unit temperature sensing and control
- Industrial process temperature monitoring
- Pneumatic DDC and legacy control panel integration
Why Choose the Johnson Controls T-5210-1001?
Designed for professionals who demand accuracy and dependability, the T-5210-1001 delivers consistent pneumatic temperature signal transmission across a broad range of conditions. Its robust construction and straightforward installation make it a go-to solution for HVAC technicians and building automation engineers working with pneumatic control infrastructure.
