Description

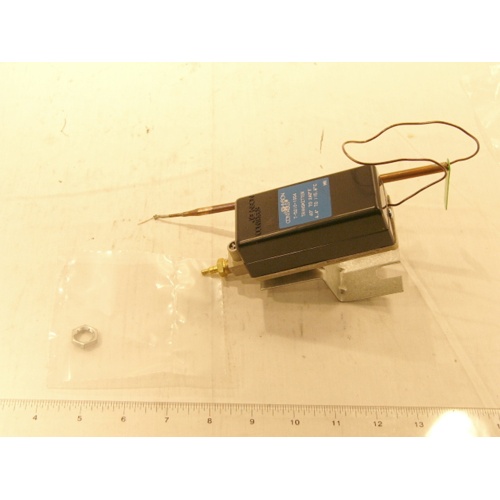

The Johnson Controls T-5210-1004 is a precision-engineered pneumatic temperature transmitter designed for reliable temperature sensing and signal transmission in commercial HVAC and building automation systems. Featuring a 5½” capillary with bulb, this transmitter converts sensed temperature into a proportional pneumatic output signal, making it an ideal fit for pneumatic control loops in air handling, hydronic, and process applications.
Operating Specifications
- Operating Temperature Range: 40°F to 240°F
- Element Temperature Range: 40°F to 310°F
- Output Pressure Range: 3 to 15 Psig
- Air Consumption and Output Flow Capacity: 45 SCIM
- Capillary Length with Bulb: 5½”
Key Features
- Pneumatic output signal (3–15 Psig) for direct integration with pneumatic controllers and actuators
- Wide operating temperature range supports diverse HVAC and process control applications
- Extended element temperature range (up to 310°F) for high-temperature sensing environments
- 5½” capillary bulb design for accurate, responsive temperature detection
- 45 SCIM air consumption rating ensures compatibility with standard pneumatic supply systems
- Durable construction from Johnson Controls — a trusted name in building controls and automation
Applications
- Commercial HVAC air handling units
- Hydronic heating and cooling systems
- Pneumatic building automation and control loops
- Industrial and process temperature monitoring
Why Choose the Johnson Controls T-5210-1004?
The T-5210-1004 delivers dependable pneumatic temperature sensing with a broad measurement range and industry-standard 3–15 Psig output. Its robust capillary bulb design and 45 SCIM flow capacity make it a go-to solution for contractors and facilities engineers maintaining or upgrading pneumatic control systems. Backed by Johnson Controls’ legacy of quality, this transmitter ensures accurate, long-lasting performance in demanding environments.
