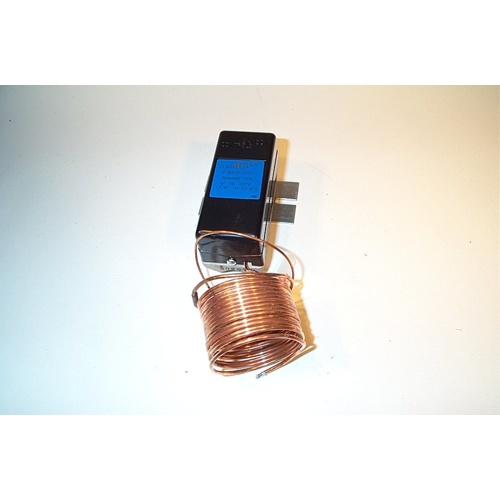

Johnson Controls T-5210-1009 Pneumatic Temperature Transmitter, 3–15 Psig

Description

The Johnson Controls T-5210-1009 is a precision pneumatic temperature transmitter engineered for reliable sensing and control in commercial and industrial HVAC applications. Featuring an 8-foot copper averaging element paired with a 1-foot copper capillary, this transmitter accurately measures ambient or duct temperatures and converts them into a proportional pneumatic output signal for downstream control devices.

Key Features

• Operating temperature range: 0 to 100°F — ideal for typical HVAC ambient and duct sensing environments
• Element temperature range: 0 to 270°F — broad sensing capability for diverse applications
• Output pressure range: 3 to 15 Psig — standard pneumatic control signal compatible with a wide range of pneumatic actuators and controllers
• 8-foot copper averaging element with 1-foot copper capillary — provides accurate mean-temperature readings across wide surfaces
• Air consumption: 45 SCIM — efficient pneumatic operation for low-demand air supply systems

Application Highlights

• Designed for pneumatic building automation and HVAC control systems
• Copper averaging element delivers consistent, reliable temperature averaging across duct cross-sections or large spaces
• Standard 3–15 Psig output integrates seamlessly with pneumatic valves, damper actuators, and other control components
• Suitable for commercial buildings, industrial facilities, and institutional HVAC systems utilizing pneumatic controls

Specifications

• Brand: Johnson Controls
• Model / SKU: T-5210-1009
• Operating Temperature Range: 0 to 100°F
• Element Temperature Range: 0 to 270°F
• Output Pressure Range: 3 to 15 Psig
• Element Type: 8-foot copper averaging element
• Capillary: 1-foot copper capillary
• Air Consumption: 45 SCIM
