Description

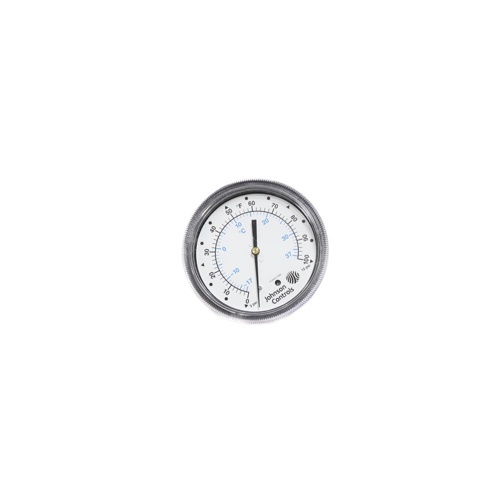

The Johnson Controls T-5500-1052 is a precision pneumatic temperature indicator engineered for reliable, at-a-glance temperature monitoring in commercial HVAC and building automation systems. With a large 3-1/2″ dial face, this indicator delivers clear, easy-to-read temperature readings without the need for electrical power — making it an ideal solution for pneumatic control systems where simplicity and dependability are paramount.
Key Features
- 3-1/2″ dial face for clear, at-a-glance temperature readings
- Temperature range: 0 to 100°F — suited for typical HVAC and building environment monitoring
- Accuracy: ±1/2% of full scale for dependable measurement performance
- Operating pressure range: 3 to 15 PSIG — compatible with standard pneumatic control systems
- 1/8″ NPT air connection for straightforward integration into existing pneumatic lines
- Flush or surface mount options for flexible installation in panels, walls, or enclosures
- No electrical power required — fully pneumatic operation
Applications
- Commercial HVAC pneumatic control systems
- Building automation and energy management panels
- Mechanical rooms and air handling unit monitoring
- Boiler and chiller plant temperature indication
Specifications
- Brand: Johnson Controls
- Model: T-5500-1052
- Dial Size: 3-1/2″
- Temperature Range: 0 to 100°F
- Accuracy: ±1/2% of full range
- Pressure Range: 3 to 15 PSIG
- Air Connection: 1/8″ NPT
- Mounting: Flush or Surface Mount
