Description

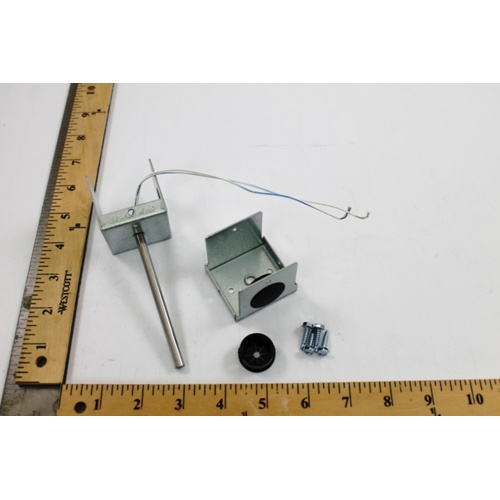

The Johnson Controls TE-635GM-1 is a precision duct-mount temperature sensor engineered for reliable air temperature monitoring in commercial and industrial HVAC systems. Featuring a platinum resistive element with a 1,000 Ohm (1K Ohm) resistance output, this sensor delivers highly accurate and stable temperature readings that building automation and control systems depend on.
Key Features
- Duct-mount configuration for direct in-duct air temperature measurement
- 4-inch probe length for effective sensing in a wide range of duct sizes
- Platinum resistive element for superior accuracy and long-term stability
- 1K Ohm (1,000 Ohm) resistance output for compatibility with standard BAS/DDC controllers
- Designed for seamless integration into building automation systems
- Durable construction suited for commercial and light industrial HVAC applications
Why Choose the Johnson Controls TE-635GM-1?
Platinum resistance temperature detectors (RTDs) are the gold standard for HVAC sensing applications, offering far greater accuracy and repeatability than thermistor-based alternatives. The 1K Ohm platinum element minimizes lead-wire resistance effects, making it ideal for longer cable runs common in commercial buildings. The 4-inch probe ensures adequate immersion depth for accurate air-stream sampling without excessive intrusion into duct airflow.
Typical Applications
- Supply and return air temperature sensing in AHUs and RTUs
- Mixed-air temperature monitoring in economizer systems
- Zone-level duct temperature measurement for VAV systems
- Building automation and DDC control system integration
Product Specifications
- Brand: Johnson Controls
- Model / SKU: TE-635GM-1
- Mounting Type: Duct Mount
- Probe Length: 4 inches
- Sensing Element: Platinum RTD
- Resistance Output: 1,000 Ohm (1K Ohm)
