Description

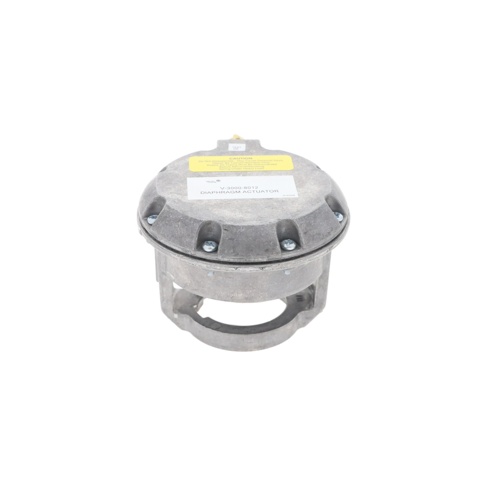

The Johnson Controls V-3000-8012 is a proportional control, spring return pneumatic valve actuator designed for precise linear movement in commercial HVAC and building automation applications. With an 8 square inch diaphragm area, this actuator delivers reliable, repeatable positioning performance across a broad range of pneumatic control systems.
Key Features
- Proportional control for accurate, modulating valve positioning
- Spring return design ensures fail-safe valve positioning on loss of air signal
- Linear movement for direct, predictable stroke response
- 8 square inch diaphragm area provides ample actuating force
- Maximum 25 PSI control pressure rating
- Compatible with 1/4″ or 5/32″ OD barbed air connections for flexible pneumatic piping
- Multiple spring ranges available depending on spring kit selected: 3–6 PSI, 4–8 PSI, or 9–13 PSI
Specifications
- Brand: Johnson Controls
- Model / SKU: V-3000-8012
- Actuator Type: Pneumatic, Spring Return
- Movement Type: Linear
- Diaphragm Area: 8 square inches
- Maximum Control Pressure: 25 PSI
- Air Connection: 1/4″ or 5/32″ OD Barbed
- Control Ranges (spring-dependent): 3–6 PSI | 4–8 PSI | 9–13 PSI
Application
The V-3000-8012 is ideal for use in commercial HVAC systems where pneumatic control of two-way or three-way valves is required. Its spring return functionality provides a reliable fail-safe position, making it well-suited for chilled water, hot water, and steam valve applications in air handling units, fan coil units, and other hydronic systems. The selectable spring ranges allow this actuator to be configured to match a wide variety of pneumatic control signal requirements.
