Description
Overview

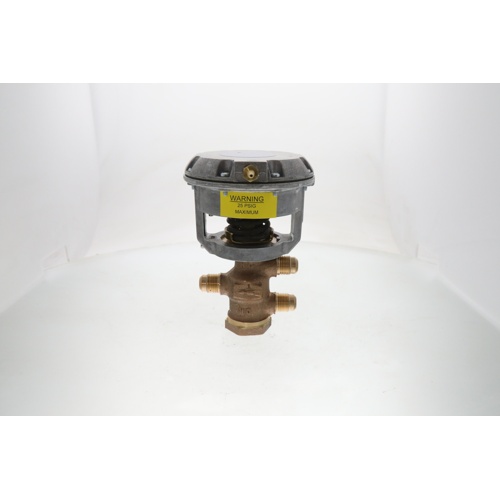

The Johnson Controls V-4332-1006 is a 1/2″ flare-connection, three-way mixing valve engineered for precise hydronic and pneumatic control applications. Featuring a 9 to 13 PSI spring range, this valve delivers reliable, repeatable flow modulation in commercial HVAC systems where accurate fluid mixing and diversion are critical.
Key Features
- 1/2″ flare connection for secure, leak-free installation
- Three-way mixing configuration for versatile flow control
- 9 to 13 PSI spring range for consistent pneumatic actuation
- 1.7 Cv PDTC (Pressure Drop to Close) port for precise flow regulation
- 2.3 Cv PDTO (Pressure Drop to Open) port for optimized system performance
- Designed for compatibility with Johnson Controls pneumatic actuator systems
- Compact, durable construction suited for demanding commercial HVAC environments
Application
The V-4332-1006 is ideal for use in pneumatically controlled hydronic heating and cooling systems, fan coil units, and air handling unit coil circuits where three-way mixing or diverting valve control is required. Its dual-port Cv ratings allow system designers to optimize flow balance across both the PDTC and PDTO ports.
Specifications
- Brand: Johnson Controls
- SKU / Part Number: V-4332-1006
- Connection Type: 1/2″ Flare
- Valve Configuration: Three-Way Mixing
- Spring Range: 9 to 13 PSI
- PDTC Port Cv: 1.7
- PDTO Port Cv: 2.3
