Description

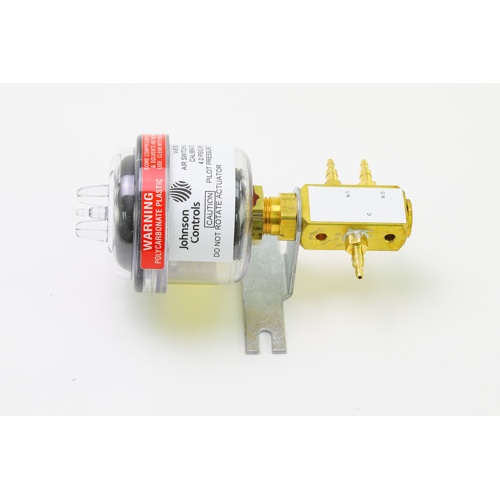

The Johnson Controls V-6135-1 is a three way pneumatic air switching valve engineered for reliable signal-driven port control in commercial HVAC pneumatic control systems. Designed for straightforward integration into existing pneumatic circuits, this valve delivers precise switchover performance at a control signal pressure between 2 and 4 Psig.
How It Works
The V-6135-1 operates on a simple yet effective two-state switching principle. In the de-energized (no control signal) state, the upper port is closed and the lower port remains open. When a control signal is applied within the 2–4 Psig switchover range, the upper port opens and the lower port closes — enabling accurate pneumatic circuit routing without the need for complex electronic controls.
Key Features
- Three way air switching valve for pneumatic HVAC control systems
- Switchover pressure range: 2 to 4 Psig
- Upper port: Closed in normal state; opens upon control signal
- Lower port: Open in normal state; closes upon control signal
- Barbed fittings compatible with 5/32″ or 1/4″ OD polytubing air connections
- Compact design for easy installation in tight pneumatic control panels
- Johnson Controls quality construction for long-term reliability
Applications
- Pneumatic HVAC control systems in commercial and institutional buildings
- Air signal switching and routing in building automation pneumatic circuits
- Damper and valve control sequencing
- Retrofit and replacement in existing Johnson Controls pneumatic systems
Specifications
- Model: V-6135-1
- Brand: Johnson Controls
- Valve Type: Three Way Air Switching Valve
- Switchover Pressure: 2–4 Psig
- Connection Type: Barbed fittings
- Compatible Tubing OD: 5/32″ or 1/4″ polytubing
- Upper Port Default State: Closed (opens on control signal)
- Lower Port Default State: Open (closes on control signal)
