Description

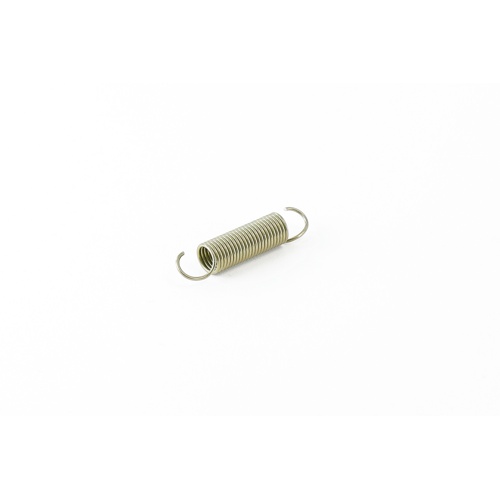

The Johnson Controls V-9502-6801 is a precision-engineered positioner spring designed specifically for use with V-3000 series actuated valves. This replacement spring supports three distinct stroke-to-span configurations, making it a versatile solution for pneumatic valve control applications in commercial HVAC and building automation systems.
Stroke and Span Configurations
- 5/16″ stroke for 3 PSI span
- 1/2″ stroke for 5 PSI span
- 3/4″ stroke for 10 PSI span
Key Features
- Engineered for direct compatibility with Johnson Controls V-3000 series actuated valves
- Supports multiple stroke and pressure span combinations in a single component
- Precision-calibrated spring tension for accurate valve positioning and control
- Designed for reliable, long-term performance in pneumatic control systems
- OEM Johnson Controls replacement part for consistent system integrity
Application
The V-9502-6801 positioner spring is a critical component in pneumatic valve positioning assemblies. It works in conjunction with the V-3000 actuator to translate pneumatic signal pressure into precise valve stroke movement, ensuring accurate flow control in hydronic heating, cooling, and process systems. The multi-span capability allows technicians to configure the actuator for the appropriate control range based on the system’s pneumatic signal requirements.
Product Specifications
- SKU: V-9502-6801
- Brand: Johnson Controls
- Compatible With: V-3000 Series Actuated Valves
- Stroke / Span Options: 5/16″ / 3 PSI | 1/2″ / 5 PSI | 3/4″ / 10 PSI
- Component Type: Positioner Spring
