Description

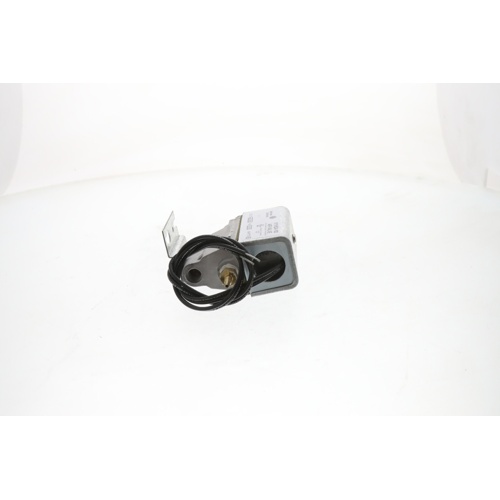

The Johnson Controls V11HDA-100 is a heavy-duty 3-way solenoid air valve engineered for reliable pneumatic control in commercial and industrial HVAC applications. Rated for 440/480VAC operation, this valve delivers precise directional airflow switching to support actuator control, damper positioning, and other pneumatic system functions.
Port Configuration
- Common Port: 1/4″ barb connection
- Normally Closed (NC) Port: 1/4″ barb connection
- Normally Open (NO) Port: 1/8″ NPT connection
Key Features
- 3-way valve design for versatile pneumatic circuit routing
- 440/480VAC coil voltage for compatibility with industrial power systems
- Mixed connection types — barb fittings on common and NC ports for flexible tubing connections; NPT threading on NO port for rigid pipe integration
- Normally closed design ensures safe fail-state operation upon power loss
- Compact, robust construction suited for demanding HVAC control environments
- Designed for use in pneumatic control systems including damper actuators and valve positioners
Electrical Specifications
- Voltage: 440/480VAC
Connection Specifications
- Common Port: 1/4″ barb
- Normally Closed Port: 1/4″ barb
- Normally Open Port: 1/8″ NPT
Applications
- Commercial HVAC pneumatic control systems
- Damper actuator supply and exhaust circuits
- Industrial pneumatic valve positioners
- Building automation pneumatic networks
Trust Johnson Controls engineering and the reliability of the V11HDA-100 to keep your pneumatic control systems operating at peak performance. Available at Jackson Systems.
