Description

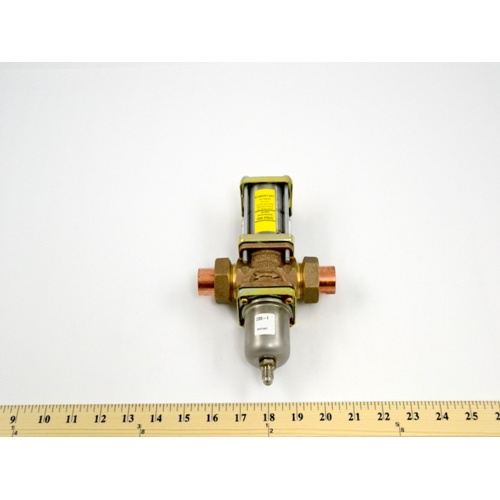

The Johnson Controls V146GK1-001 is a two-way, pressure-actuated water regulating valve engineered for use with non-corrosive, high-pressure refrigerant systems. Featuring a 3/4″ union sweat connection and a 200 to 400 PSI opening point range, this valve precisely modulates condenser water flow in response to refrigerant head pressure — helping maintain optimal system efficiency and protecting compressor components from pressure extremes.
The valve is equipped with a Style 5 pressure element featuring a 1/4″ external flare connector, allowing for straightforward field connection to the refrigerant circuit. The union sweat end connections simplify installation and future serviceability, while the two-way design provides reliable, direct-acting flow control without the need for an external power source.
This valve is ideal for commercial refrigeration and air conditioning applications where precise head pressure control is critical to system performance and longevity.
Key Features
- Two-way, pressure-actuated design — no external power required
- 3/4″ union sweat end connections for easy installation and service
- Opening point range: 200 to 400 PSI
- Designed for non-corrosive, high-pressure refrigerant service
- Style 5 pressure element with 1/4″ external flare connector
- Modulates condenser water flow to maintain stable head pressure
- Supports compressor protection and system efficiency
Specifications
- SKU: V146GK1-001
- Brand: Johnson Controls
- Connection Type: 3/4″ Union Sweat
- Valve Action: Two-Way, Pressure Actuated
- Opening Point Range: 200–400 PSI
- Pressure Element Style: Style 5
- Pressure Element Connector: 1/4″ External Flare
- Media: Non-Corrosive High-Pressure Refrigerant
Applications
- Commercial air conditioning condensing units
- Refrigeration systems requiring head pressure control
- Water-cooled condenser circuits
- High-pressure refrigerant systems
