Description

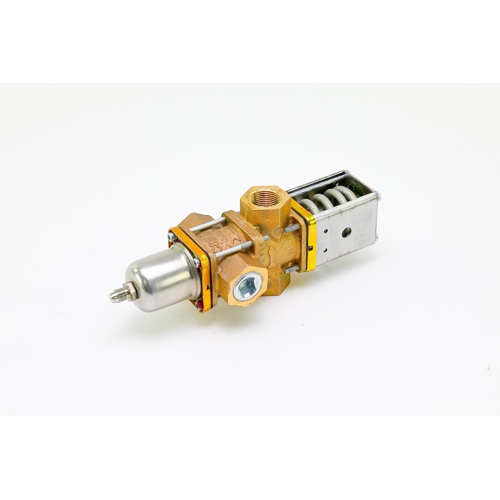

Johnson Controls V248GC1-001C — Commercial Three-Way Pressure Actuated Water Regulating Valve
The Johnson Controls V248GC1-001C is a direct acting, three-way pressure actuated water regulating valve engineered for high-pressure refrigerant applications in commercial HVAC and refrigeration systems. Built with a durable cast brass body, this valve automatically modulates condenser water flow in response to refrigerant head pressure, helping maintain optimal system efficiency and protecting compressor equipment from high-pressure conditions.
Key Features
- 3/4″ NPT connection for straightforward installation into standard commercial piping
- 200 to 400 PSI opening point range for high-pressure refrigerant system compatibility
- Commercial-grade cast brass body construction for long-term durability and corrosion resistance
- Direct acting, three-way valve design for precise condenser water flow control
- 1/4″ external flare fitting (Style 5) pressure element for reliable refrigerant pressure sensing
- Pressure actuated operation — no external power source required
Application
The V248GC1-001C is designed for use in commercial refrigeration and air conditioning systems where condenser water flow must be regulated based on refrigerant head pressure. The three-way configuration allows the valve to divert or mix water flow paths, making it well suited for systems requiring bypass or mixing control to maintain consistent condensing temperatures. The 1/4″ external flare fitting Style 5 pressure element connects directly to the high-pressure refrigerant line, enabling the valve to respond automatically to pressure changes without electrical controls.
Specifications
- SKU: V248GC1-001C
- Brand: Johnson Controls
- Connection Size: 3/4″ NPT
- Opening Point Pressure Range: 200 to 400 PSI
- Body Material: Cast Brass
- Valve Action: Direct Acting
- Valve Type: Three-Way, Pressure Actuated
- Application: High-Pressure Refrigerant Systems
- Pressure Element Fitting: 1/4″ External Flare (Style 5)
- Valve Category: Commercial Type Water Regulating Valve
Why Choose the Johnson Controls V248GC1-001C?
Johnson Controls has been a trusted name in commercial HVAC controls and valves for decades. The V248GC1-001C delivers reliable, automatic pressure-based water regulation without the need for electrical actuation, reducing complexity and potential failure points. Its cast brass construction and commercial-grade design ensure long service life in demanding refrigeration environments. This valve is an ideal replacement or upgrade for commercial condensing systems operating with high-pressure refrigerants.
