Description

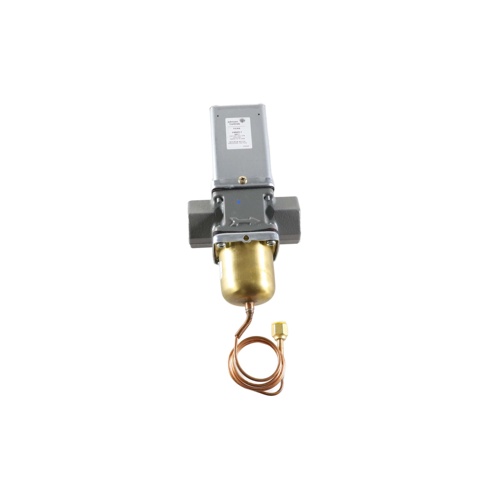

Johnson Controls V46AD-1 Pressure Actuated Water Regulating Valve
The Johnson Controls V46AD-1 is a commercial-grade, direct-acting, pressure-actuated water regulating valve engineered for reliable condenser water flow control in non-corrosive refrigerant systems. Built with a durable cast iron body, this Style 45 valve is designed for standard-flow commercial applications where precise pressure-responsive modulation is critical to system efficiency and equipment protection.
Key Features
- 1″ NPT connection for straightforward installation into standard commercial piping systems
- Opening point pressure range of 70 to 260 PSI, providing wide adjustability for diverse refrigeration system demands
- Direct-acting design responds immediately to refrigerant pressure changes for accurate water flow modulation
- Cast iron body construction delivers long-lasting durability in commercial HVAC and refrigeration environments
- Standard flow configuration suitable for a broad range of commercial condenser water applications
- Compatible with non-corrosive refrigerants, ensuring safe and reliable operation
- Includes a 30″ capillary with 1/4″ flare nut for flexible remote sensing and easy connection to the refrigerant circuit
- Style 45 pressure element for consistent, repeatable performance
Specifications
- SKU: V46AD-1
- Brand: Johnson Controls
- Connection Size: 1″ NPT
- Opening Point Pressure Range: 70 to 260 PSI
- Body Material: Cast Iron
- Valve Type: Direct Acting, Pressure Actuated
- Flow Type: Standard Flow
- Application: Non-Corrosive Refrigerant Systems
- Capillary Length: 30″
- Capillary Connection: 1/4″ Flare Nut
- Style: 45 Pressure Element
Application
The V46AD-1 is ideal for use in commercial refrigeration and air conditioning systems where condenser water flow must be regulated in response to refrigerant head pressure. By opening and closing in direct response to system pressure, this valve helps maintain optimal condensing conditions, protect compressors, and improve overall system efficiency. Its cast iron construction and wide pressure range make it a versatile solution for a variety of commercial installations.
