Description

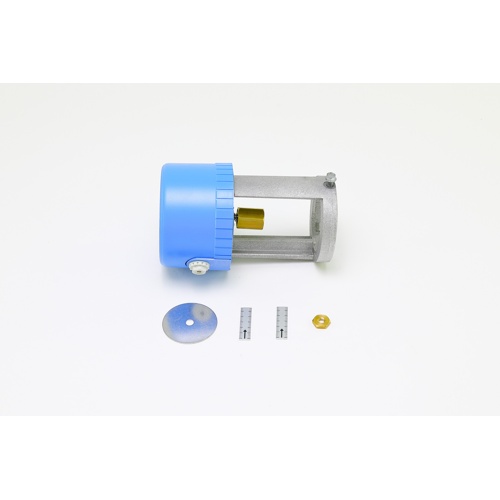

The Johnson Controls VA-7150-1001 is a high-performance, non-spring return direct coupled globe valve actuator engineered for precise flow control in commercial HVAC hydronic systems. Designed to deliver reliable, repeatable positioning, this actuator integrates seamlessly with building automation and control systems requiring three-wire incremental operation.
Key Features
- 24VAC power supply for compatibility with standard HVAC control circuits
- Three-wire incremental control signal for accurate, step-by-step valve positioning
- 90 lb-in (10 N·m) torque output for dependable actuation across a wide range of globe valve sizes
- 5/16″ to 25/32″ stroke range to accommodate multiple valve configurations
- Screw terminal connections for fast, secure field wiring
- Non-spring return design maintains last position on power loss
- Direct coupled mounting eliminates the need for additional linkage hardware
Product Specifications
- SKU: VA-7150-1001
- Brand: Johnson Controls
- Supply Voltage: 24VAC
- Control Type: Three-Wire Incremental
- Torque Rating: 90 lb-in
- Stroke Range: 5/16″ – 25/32″
- Wiring: Screw Terminals
- Return Type: Non-Spring Return
- Mounting: Direct Coupled
- Valve Type Compatibility: Globe Valves
Application
The VA-7150-1001 is ideal for use in commercial and light industrial HVAC applications including chilled water, hot water, and steam systems. Its direct coupled design simplifies installation on compatible globe valves, while the three-wire incremental control interface ensures precise modulation for energy-efficient system performance. The non-spring return function is suited for applications where valve position retention upon power interruption is required.
