Description

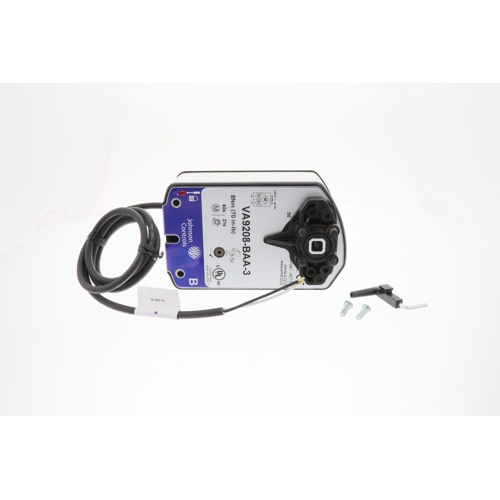

The Johnson Controls VA9208-BAA-3 is a high-performance, spring return direct coupled ball valve actuator engineered for reliable two-position control in commercial HVAC and building automation applications. Designed for direct shaft mounting, this actuator eliminates the need for couplings or linkages, simplifying installation and reducing potential failure points.
Key Features
- 120VAC power supply for compatibility with standard commercial control systems
- Two-position (open/close) operation for straightforward on/off valve control
- 70 lb-in output torque for dependable actuation of ball valves under demanding system pressures
- 55–71 second power-on run time for controlled, smooth valve travel
- Spring return fail-safe mechanism automatically returns the valve to its de-energized position on power loss, enhancing system safety
- 48″ appliance cable provides flexible wiring reach for a variety of installation configurations
- Integral 3/8″ FMC (Flexible Metal Conduit) connector for secure, code-compliant wiring termination
- Direct coupled design mounts directly to the valve shaft — no external linkage required
Application
The VA9208-BAA-3 is ideal for use in hydronic heating and cooling systems, fan coil units, air handling units, and other HVAC applications where reliable two-position ball valve control is required. The spring return function ensures the system defaults to a safe state during power interruptions, making it well-suited for critical building automation environments.
Specifications
- Brand: Johnson Controls
- Model / SKU: VA9208-BAA-3
- Supply Voltage: 120VAC
- Control Type: Two Position
- Output Torque: 70 lb-in
- Power-On Run Time: 55–71 seconds
- Fail-Safe: Spring Return
- Mounting: Direct Coupled
- Cable Length: 48 inches
- Conduit Connector: Integral 3/8″ FMC
