Description

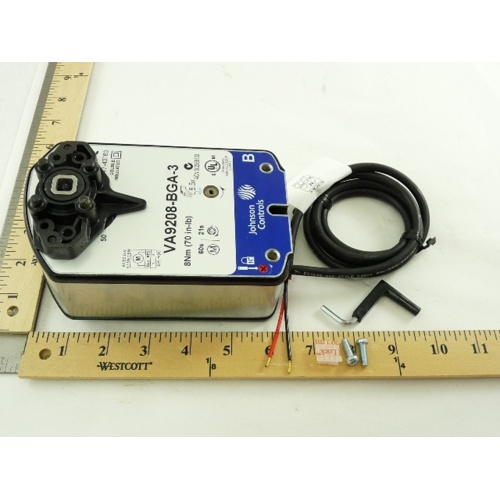

The Johnson Controls VA9208-BGA-3 is a high-performance, spring return direct coupled ball valve actuator engineered for reliable two-position control in commercial HVAC and building automation applications. Designed to deliver precise, dependable actuation, this unit is built to meet the demanding requirements of modern hydronic and fluid control systems.
Power & Electrical Specifications
- Supply Voltage: 24 Vac / 24 Vdc
- Control Type: Two-Position (On/Off)
- Power-On Run Time: 55–71 seconds
Mechanical Performance
- Torque Output: 70 lb-in — suitable for demanding valve control applications
- Spring Return mechanism ensures fail-safe valve positioning upon loss of power
- Direct coupled design eliminates the need for additional linkage hardware, simplifying installation
Wiring & Connectivity
- 48-inch appliance cable for flexible field wiring
- Integral 3/8″ Flexible Metal Conduit (FMC) connector for secure, code-compliant wiring termination
Key Features & Benefits
- Spring return fail-safe operation protects system integrity during power loss
- Two-position control simplifies integration with standard BAS and HVAC control systems
- Direct coupled mounting reduces installation time and minimizes mechanical complexity
- 48″ appliance cable with integral 3/8″ FMC connector provides a clean, professional installation
- Compact, robust construction suited for commercial and light industrial environments
- Compatible with Johnson Controls ball valve assemblies
Typical Applications
- Hydronic heating and cooling systems
- Fan coil unit valve control
- Air handling unit coil valve control
- Building automation and energy management systems
- Two-pipe and four-pipe HVAC systems
The VA9208-BGA-3 is an ideal choice for contractors and engineers seeking a reliable, easy-to-install actuator solution backed by the trusted Johnson Controls brand.
