Description

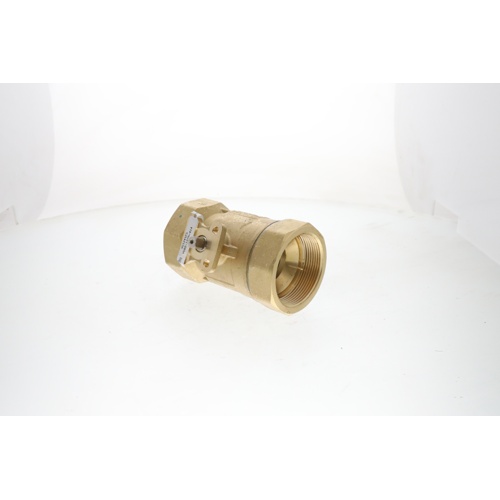

The Johnson Controls VG1241FS is a heavy-duty two-way ball valve engineered for precise flow control in commercial and industrial HVAC hydronic systems. Built with a forged brass body and plated brass trim, this valve delivers exceptional durability, corrosion resistance, and long service life in demanding building automation and mechanical system applications.
Key Features
- 2″ NPT end connections for straightforward installation into standard piping systems
- 46.8 Cv flow coefficient for high-capacity flow performance
- Two-way equal percentage flow characteristic for precise, proportional control across the full valve stroke
- Forged brass body construction for superior strength and pressure integrity
- Plated brass trim for enhanced corrosion resistance and long-term reliability
- Designed for compatibility with Johnson Controls actuators in building automation and HVAC control applications
Application
The VG1241FS is ideal for use in chilled water, hot water, and heating/cooling coil control applications in commercial buildings, hospitals, universities, and industrial facilities. The equal percentage flow characteristic makes it well-suited for modulating control where precise temperature regulation is required. When paired with a compatible Johnson Controls actuator, it delivers accurate, repeatable valve positioning for optimized system efficiency.
Product Specifications
- SKU: VG1241FS
- Brand: Johnson Controls
- Valve Type: Ball Valve, Two-Way
- Flow Characteristic: Equal Percentage
- Pipe Size: 2″ NPT
- Cv Rating: 46.8
- Body Material: Forged Brass
- Trim Material: Plated Brass
