Description
Overview

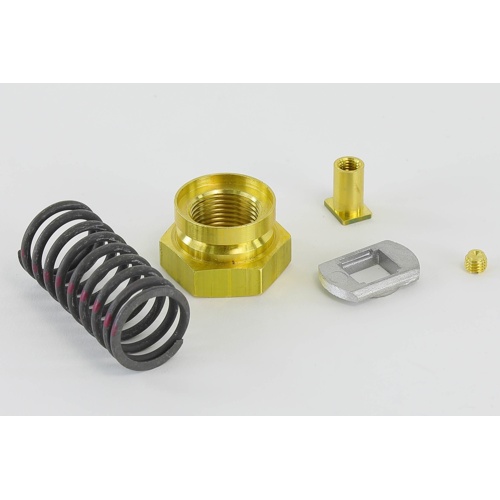

The Johnson Controls VG7000-1010 is a field-mountable spring kit engineered to provide precise pneumatic actuation control for HVAC valve assemblies. Designed as a direct-fit accessory for the V-3801-8001 pneumatic actuator, this spring kit allows technicians to set or adjust the spring range in the field without replacing the entire actuator assembly — saving time and reducing downtime on commercial HVAC systems.
Key Features
- Spring range: 3–6 PSI for accurate pneumatic signal response
- Compatible with 1/2″ and 3/4″ valve bodies
- Designed for valves with a 5/16″ stroke
- Field-mountable design for convenient on-site installation and adjustment
- Engineered for use with the Johnson Controls V-3801-8001 pneumatic actuator
- Supports reliable modulating control in commercial HVAC applications
Application
This spring kit is ideal for use in commercial building automation and HVAC control systems where pneumatic actuators regulate hot water, chilled water, or steam valves. The 3–6 PSI spring range is suited for systems requiring precise proportional control, and the field-mounting capability makes it an efficient solution for service technicians performing maintenance or system upgrades.
Specifications
- SKU: VG7000-1010
- Brand: Johnson Controls
- Spring Range: 3–6 PSI
- Compatible Valve Body Sizes: 1/2″ and 3/4″
- Valve Stroke: 5/16″
- Compatible Actuator: V-3801-8001 Pneumatic Actuator
- Mounting Type: Field Mount
