Description

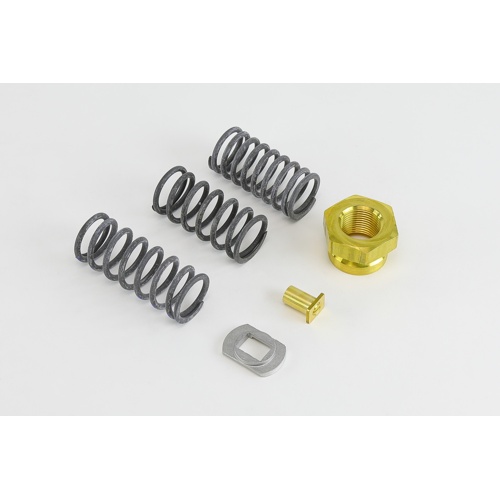

The Johnson Controls VG7000-1015 is a field mounting spring kit designed for use with the V-3801-8001 pneumatic actuator. This versatile kit supports multiple spring ranges and is compatible with 1/2″ or 3/4″ valve bodies featuring a 5/16″ stroke, making it an ideal solution for field retrofits, replacements, and system upgrades in commercial HVAC pneumatic control applications.
Spring Range Options
- 3–6 PSI spring range
- 4–8 PSI spring range
- 9–13 PSI spring range
Compatibility
- Designed for the Johnson Controls V-3801-8001 pneumatic actuator
- Compatible with 1/2″ valve bodies
- Compatible with 3/4″ valve bodies
- Valve stroke: 5/16″
Key Features
- Field-mountable design for convenient on-site installation
- Multiple PSI spring ranges covered in a single kit for flexible application
- Engineered to Johnson Controls quality standards for reliable pneumatic control performance
- Ideal for replacement or upgrade of existing pneumatic actuator spring assemblies
Applications
The VG7000-1015 spring kit is well-suited for commercial and light industrial HVAC systems utilizing pneumatic valve control. Whether restoring an existing actuator to proper operation or completing a field modification, this kit delivers the correct spring force across a range of operating pressures to ensure precise valve positioning and reliable system control.
