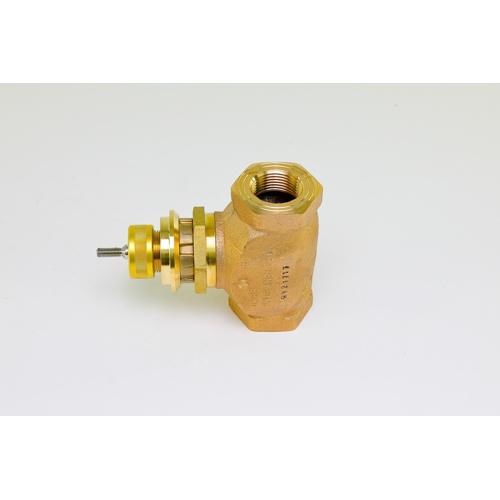

Johnson Controls VG7241NT Globe Valve, 2-Way N.O., 1″ NPT, 11.6 Cv, Bronze

Description

The Johnson Controls VG7241NT is a heavy-duty, 2-way normally open globe valve engineered for precise flow control in commercial HVAC hydronic systems. Built with a cast bronze body and brass trim, this valve delivers long-lasting corrosion resistance and reliable performance in demanding heating and cooling applications.

Key Features

• 2-Way, normally open (N.O.) configuration for fail-safe operation
• 1″ NPT end connections for straightforward installation into standard piping systems
• 11.6 Cv flow coefficient for accurate, high-capacity flow management
• Equal percentage flow characteristic for precise modulating control across the full stroke range
• Cast bronze body with brass trim for superior corrosion resistance and durability
• Standard threaded stem design for compatibility with a wide range of Johnson Controls actuators
• Push-down-to-close (PDC) stem action for predictable, reliable shutoff

Construction & Design

The VG7241NT features a robust cast bronze body that withstands the rigors of hydronic heating and cooling service. The brass-trimmed internals provide smooth, dependable operation over extended service life. The standard threaded stem interfaces with compatible Johnson Controls electric or pneumatic actuators, making this valve a versatile choice for building automation and HVAC control applications.

Flow Characteristics

With an equal percentage flow characteristic and an 11.6 Cv rating, the VG7241NT provides inherently stable control across varying system pressures. This makes it ideal for modulating service in air handling units, fan coil units, heat exchangers, and other hydronic terminal equipment where precise temperature regulation is required.

Applications

• Commercial HVAC hydronic heating and cooling systems
• Air handling units (AHUs) and fan coil units (FCUs)
• Heat exchangers and coil control
• Building automation and direct digital control (DDC) systems
• Variable flow hydronic distribution systems

Specifications

• SKU: VG7241NT
• Brand: Johnson Controls
• Valve Type: Globe, 2-Way
• Fail Position: Normally Open (N.O.)
• Pipe Size: 1″ NPT
• Flow Coefficient (Cv): 11.6
• Flow Characteristic: Equal Percentage
• Body Material: Cast Bronze
• Trim Material: Brass
• Stem Type: Standard Threaded
• Stem Action: Push Down to Close (PDC)
