Description
Overview

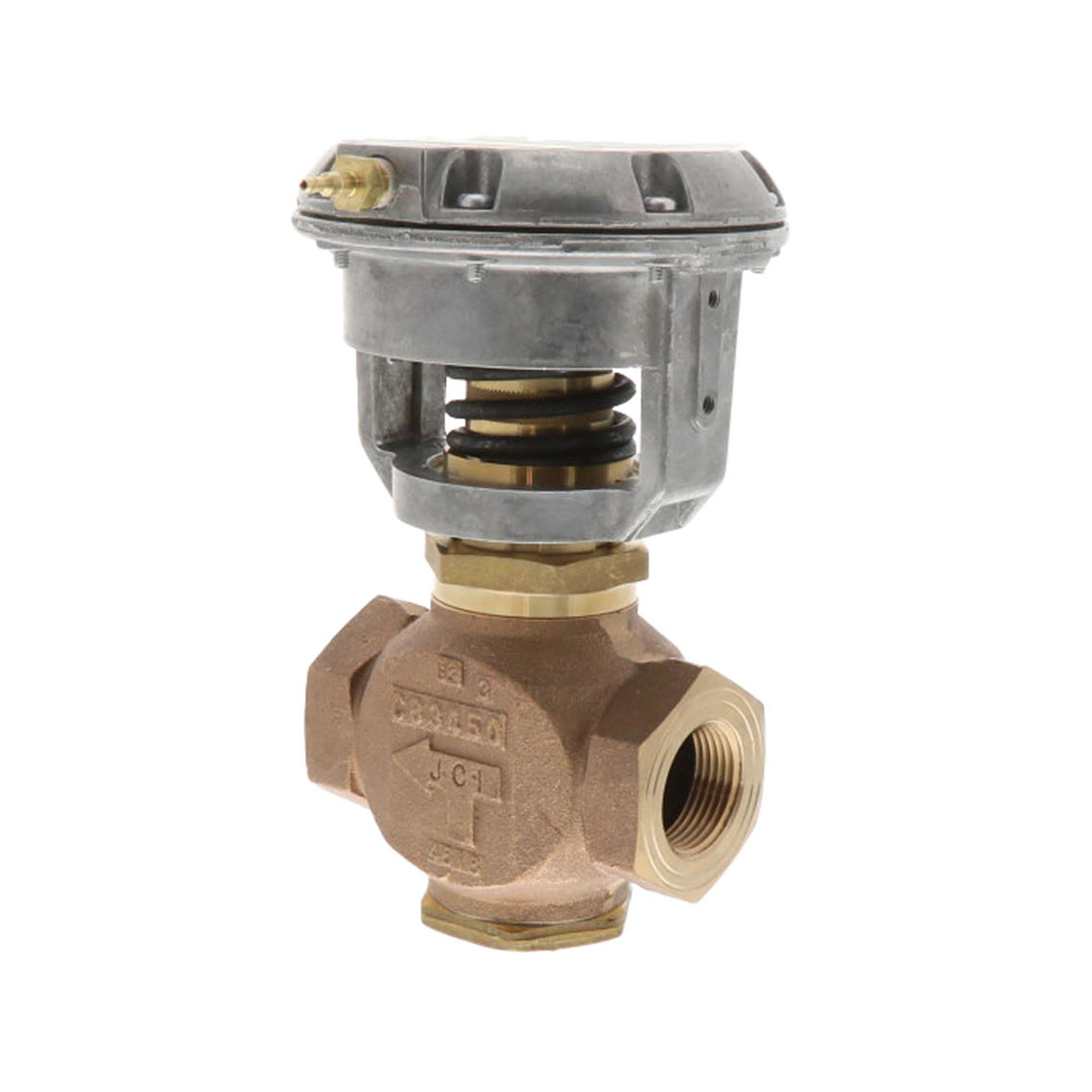

The Johnson Controls VG7441NT+3008E is a factory-assembled, 2-way normally closed valve and pneumatic actuator combination engineered for precise flow control in commercial HVAC hydronic systems. The cast bronze body with brass trim delivers long-lasting corrosion resistance, while the equal percentage flow characteristic ensures smooth, responsive modulation across the full stroke range.
Valve Features
- 2-way, normally closed (N/C) configuration
- 1″ NPT end connections for straightforward pipe installation
- 11.6 Cv flow coefficient for accurate sizing in medium-capacity applications
- Equal percentage flow characteristic for stable, linear control response
- Cast bronze body with brass trim for durability and corrosion resistance
Actuator Features
- Spring return, exposed pneumatic actuator (Model 3008E)
- 9–13 PSI spring range for reliable fail-safe positioning on air loss
- Normally closed operation — valve closes automatically on loss of pneumatic signal
- Exposed actuator design allows for easy field inspection and maintenance
Applications
- Commercial and industrial HVAC hydronic heating and cooling systems
- Air handling unit coil control
- Fan coil unit water flow regulation
- Pneumatically controlled building automation systems
Why Choose the VG7441NT+3008E
This pre-assembled valve and actuator package from Johnson Controls simplifies installation and ensures factory-matched performance between the valve body and actuator. The spring return mechanism provides a dependable fail-safe close position, protecting system components in the event of pneumatic signal loss. The equal percentage flow characteristic makes this assembly ideal for applications requiring precise capacity control across varying load conditions.
