Description

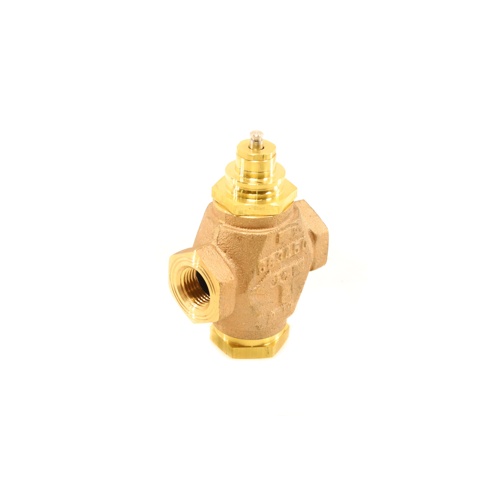

The Johnson Controls VG7841ES is a precision-engineered 3-way mixing globe valve designed for hydronic heating and cooling systems where reliable flow control is critical. Built with a cast bronze body and brass trim, this valve delivers long-lasting corrosion resistance and durability in commercial HVAC applications.
Key Features
- Globe-style, 3-way mixing configuration for blending or diverting fluid streams
- 1/2″ NPT end connections for straightforward pipe installation
- 1.8 Cv flow coefficient for accurate flow capacity sizing
- Equal percentage flow characteristic for precise, stable control across the full valve stroke
- Cast bronze body construction for superior corrosion resistance and long service life
- Brass trim components for added durability and compatibility with hydronic fluids
- Slotted stem design for easy actuator coupling and field adjustment
Application
The VG7841ES is ideal for use in commercial hydronic systems, fan coil units, air handling units, and terminal unit applications. The 3-way mixing configuration allows the valve to blend return and supply water streams to maintain precise leaving-water temperatures. The equal percentage flow characteristic ensures smooth, proportional control response, making it well-suited for use with modulating actuators in building automation and DDC control systems.
Construction
- Body Material: Cast Bronze
- Trim Material: Brass
- Stem Type: Slotted
- End Connections: 1/2″ NPT (National Pipe Thread)
- Valve Type: Globe, 3-Way Mixing
- Flow Characteristic: Equal Percentage
- Cv Rating: 1.8
Why Choose Johnson Controls VG7841ES
Johnson Controls VG Series valves are a trusted choice among HVAC contractors and building automation professionals. The VG7841ES pairs seamlessly with Johnson Controls VA, VB, and VG series actuators, making it a versatile component in new construction and retrofit hydronic control projects. Its compact 1/2″ NPT size and 1.8 Cv rating make it suitable for smaller terminal units and zone control applications requiring accurate, repeatable flow modulation.
