Description

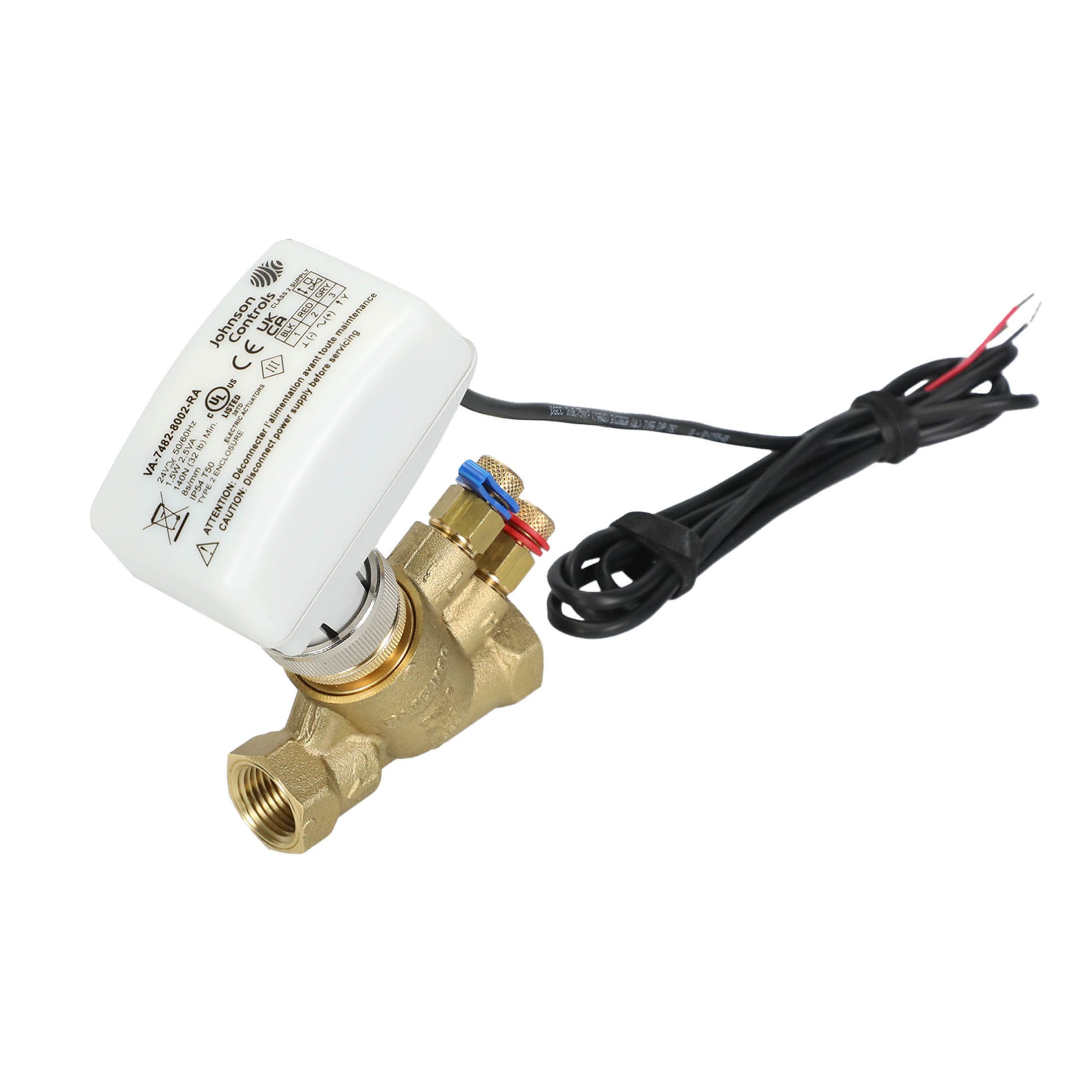

The Johnson Controls VP140HDA+778GGA is a Pressure Independent Control Valve (PICV) that combines a control valve, differential pressure regulator, and flow limiter into a single compact assembly. Designed for hydronic heating and cooling systems, this 1/2″ valve delivers precise flow control regardless of system pressure fluctuations, eliminating the need for separate balancing valves and simplifying commissioning.
Key Features
- Pressure Independent Control Valve (PICV) — integrates flow limiting, differential pressure regulation, and modulating control in one unit
- 1/2″ pipe connection for easy installation in standard hydronic piping
- Maximum flow rate of 1.98 GPM, factory pre-set for accurate system balancing
- 24V actuator voltage for compatibility with standard building automation and HVAC control systems
- NSR (Normally Spring Return) actuator provides fail-safe operation — valve returns to a defined position on power loss for system protection
- Eliminates the need for separate differential pressure control valves and manual balancing valves
- Simplifies hydronic system commissioning and reduces installation time
- Ideal for variable flow hydronic systems in commercial HVAC applications
Specifications
- SKU: VP140HDA+778GGA
- Valve Type: Pressure Independent Control Valve (PICV)
- Connection Size: 1/2″
- Maximum Flow Rate: 1.98 GPM
- Actuator Voltage: 24V
- Actuator Fail Mode: NSR (Normally Spring Return / Fail-Safe)
- Brand: Johnson Controls
Applications
- Commercial hydronic heating and cooling distribution systems
- Fan coil units and air handling units
- Variable flow chilled water and hot water systems
- Building automation system (BAS) integration
