Description

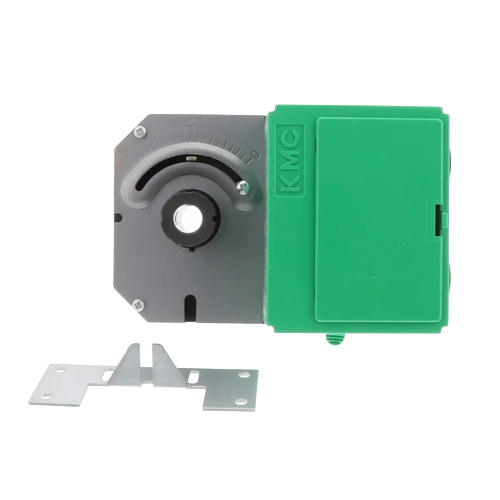

The KMC Controls MEP-5233 is a 24VAC direct coupled actuator (DCA) engineered for precise and reliable damper positioning in commercial HVAC applications. With a 90-degree rotational stroke completed in just 15 seconds, this actuator delivers fast, responsive control for air handling units, VAV systems, and damper assemblies where accurate airflow management is critical.
Designed for direct shaft mounting, the MEP-5233 eliminates the need for crank arms and linkages, simplifying installation and reducing potential points of mechanical failure. Its compact, robust construction makes it well suited for demanding building automation environments.
Key Features
- 24VAC operating voltage for compatibility with standard HVAC control systems
- Direct coupled actuator (DCA) design — no linkage hardware required
- 90-degree rotational stroke for full damper travel
- Fast 15-second stroke time for responsive system control
- Compact, space-saving form factor for tight mechanical spaces
- Suitable for use in commercial building automation and VAV applications
Specifications
- Brand: KMC Controls
- Model: MEP-5233
- Supply Voltage: 24VAC
- Actuator Type: Direct Coupled Actuator (DCA)
- Stroke Time: 15 seconds
- Rotation: 90 degrees
Applications
- Commercial HVAC damper control
- Variable Air Volume (VAV) systems
- Air handling units (AHUs)
- Building automation and controls integration
