Description

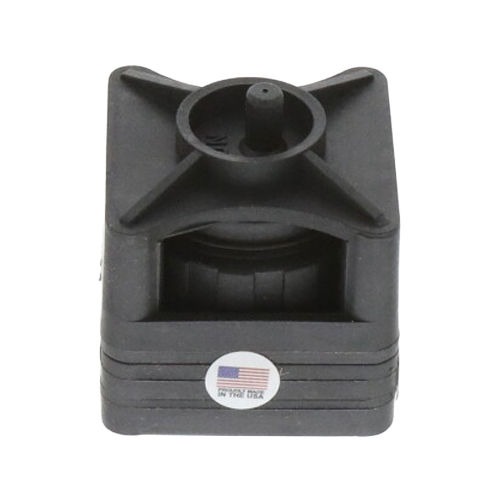

The KMC Controls RCC-1009 is a pneumatic diverting relay designed for use in building automation and HVAC control systems where precise signal switching and routing are required. This relay accepts a pneumatic input signal and diverts the output to one of two output ports based on a field-adjustable setpoint, making it ideal for sequencing, changeover, and split-range control applications.
Key Features
- Adjustable setpoint range of 3–23 PSI for flexible field configuration
- Diverting relay function routes pneumatic signal to one of two output ports
- Compact, robust construction suited for panel or direct-mount installation
- Compatible with standard pneumatic control systems operating on instrument air
- Ideal for sequencing, changeover, and split-range HVAC control strategies
- Reliable KMC Controls engineering for long-term performance in commercial building systems
Typical Applications
- Pneumatic HVAC control panels in commercial and industrial buildings
- Sequencing of heating and cooling equipment
- Split-range valve and damper actuator control
- Building automation system signal routing and changeover
Product Specifications
- Model: RCC-1009
- Type: Pneumatic Diverting Relay
- Setpoint Range: 3–23 PSI (adjustable)
- Brand: KMC Controls
- SKU: RCC-1009-KR
Trust KMC Controls’ proven pneumatic relay technology to deliver accurate, repeatable signal diversion in your HVAC control system. Order the RCC-1009 from Jackson Systems for fast shipping and expert support.
