Description

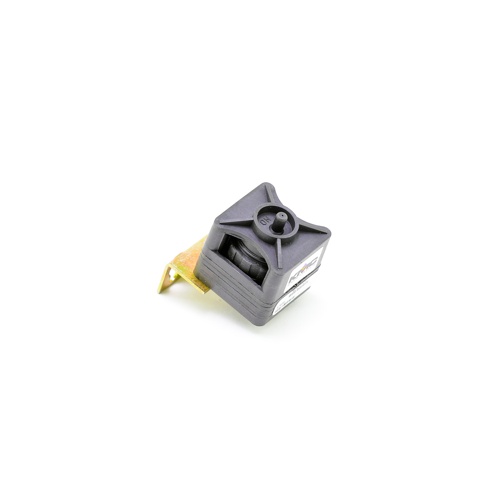

The KMC Controls RCC-1109 is a pneumatic diverting relay designed for reliable signal routing and control in commercial HVAC pneumatic systems. Supplied with a mounting bracket for straightforward installation, this relay allows technicians to divert or redirect pneumatic control signals with precision across a 3–23 PSI operating range — covering the full span of standard pneumatic control systems.
Key Features
- Pneumatic diverting relay for signal routing in HVAC control systems
- Operating pressure range: 3–23 PSI
- Includes mounting bracket for secure, convenient installation
- Compact, rugged construction suited for commercial building automation
- Compatible with standard pneumatic control circuits
- Simplifies system design by enabling signal diversion without additional hardware
Application
The RCC-1109 is ideal for use in pneumatic building automation and HVAC control systems where a control signal must be diverted between two output paths based on system conditions. It is commonly used in VAV systems, pneumatic damper control, and other commercial HVAC applications requiring dependable relay logic.
Product Specifications
- SKU: RCC-1109
- Brand: KMC Controls
- Type: Pneumatic Diverting Relay
- Operating Pressure Range: 3–23 PSI
- Includes: Mounting Bracket
