Description

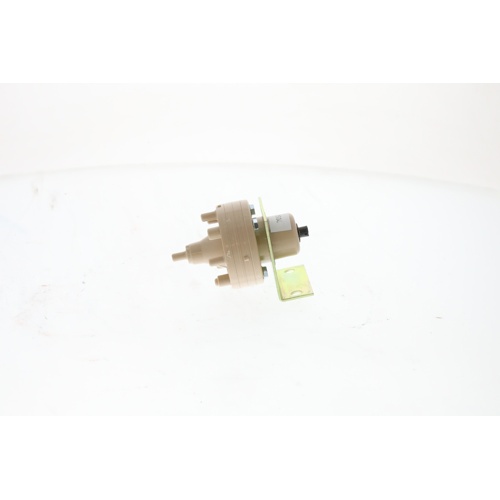

The KMC Controls RCC-1504 is a pneumatic reversing relay designed for use in building automation and HVAC control systems where signal inversion is required. This relay accepts a pneumatic input signal and outputs a reversed (complementary) signal, enabling direct-acting to reverse-acting conversion within pneumatic control loops. The included mounting bracket simplifies installation in panels, enclosures, or on standard equipment surfaces, reducing field fabrication time.
Key Features
- Pneumatic reversing relay with 9 psig changeover point
- Inverts pneumatic control signals for direct-acting to reverse-acting conversion
- Includes factory-supplied mounting bracket for easy installation
- Compact design fits standard pneumatic control panel layouts
- Compatible with KMC Controls pneumatic building automation systems
- Durable construction suited for commercial and light industrial HVAC applications
Typical Applications
- Pneumatic HVAC control systems requiring signal reversal
- VAV and fan-coil unit control loops
- Damper and valve actuator signal conditioning
- Building automation panel integration
Product Specifications
- Model: RCC-1504
- Type: Pneumatic Reversing Relay
- Changeover Setpoint: 9 psig
- Includes: Mounting Bracket
- Brand: KMC Controls
