Description

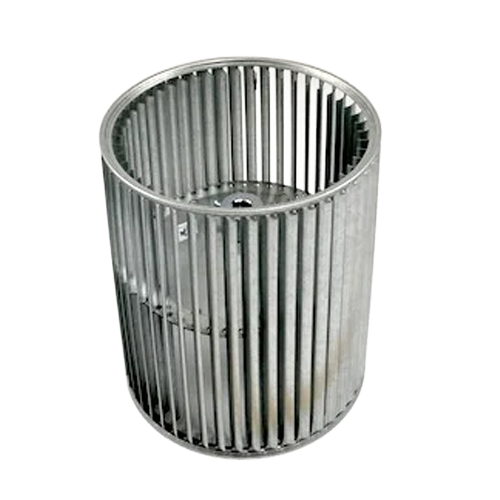

The Lau 00836012 (Model A10-10A) is a double inlet, belt drive blower wheel engineered for reliable airflow performance in commercial and residential HVAC air handling applications. Built to Lau’s exacting standards, this wheel delivers consistent, efficient air movement across a wide range of system configurations.
Key Specifications
- Diameter: 10-5/8″
- Width: 10-5/8″
- Bore: 3/4″
- Set Screw: 1 set screw
- Keyway: 3/16″ x 3/32″
- Maximum Speed: 2100 RPM
- Rotation: Clockwise (CW) / Counterclockwise (CCW)
- Inlet Type: Double Inlet
- Drive Type: Belt Drive
- Model: A10-10A
Product Highlights
- Double inlet design maximizes airflow volume and system efficiency
- CW/CCW rotation compatibility offers flexible installation in multiple blower housing orientations
- 3/4″ bore with set screw and keyway ensures secure, positive shaft engagement
- 2100 max RPM rating supports a broad range of belt drive blower applications
- Precision-balanced construction minimizes vibration for quiet, long-lasting operation
- Suitable for use in air handlers, fan coil units, and custom HVAC assemblies
Application
The Lau A10-10A blower wheel is an ideal replacement or OEM-spec component for belt drive air handling units requiring a 10-5/8″ double inlet wheel. Its universal CW/CCW rotation and standard bore dimensions make it compatible with a wide variety of blower housings used in commercial and light industrial HVAC systems.
