Description

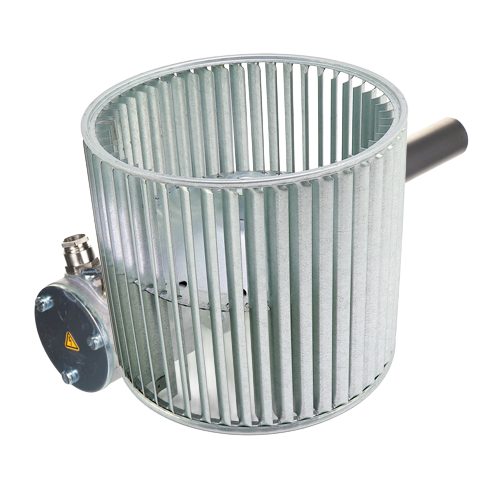

The Lau 00836212 (Model A10-9A) is a heavy-duty double inlet belt drive blower wheel engineered for reliable airflow performance in commercial and residential HVAC applications. With a 10-5/8″ diameter and 9-1/2″ width, this wheel delivers high-volume air movement in a compact, efficient package. Its double inlet design draws air from both sides of the wheel, maximizing airflow capacity while minimizing motor load.
Key Specifications
- Model: A10-9A
- SKU: 00836212
- Wheel Diameter: 10-5/8″
- Wheel Width: 9-1/2″
- Bore Size: 3/4″
- Keyway: 3/16″ x 3/32″
- Set Screws: 1
- Maximum RPM: 2300
- Rotation: Clockwise (CW) / Counterclockwise (CCW)
- Inlet Type: Double Inlet
- Drive Type: Belt Drive
Product Highlights
- Double inlet configuration maximizes airflow efficiency and static pressure performance
- Reversible CW/CCW rotation for flexible installation in a variety of blower housings
- 3/4″ bore with 3/16″ x 3/32″ keyway and set screw for secure shaft mounting
- Rated up to 2300 RPM for dependable, high-speed belt drive operation
- Precision-balanced construction minimizes vibration and extends bearing life
- Built to Lau’s exacting quality standards for long-lasting HVAC service
Applications
The Lau A10-9A blower wheel is ideal for use in air handling units, fan coil units, furnaces, and other belt drive blower assemblies requiring a double inlet wheel. Its versatile CW/CCW rotation compatibility makes it a go-to replacement or OEM component for a wide range of HVAC equipment configurations.
