Description

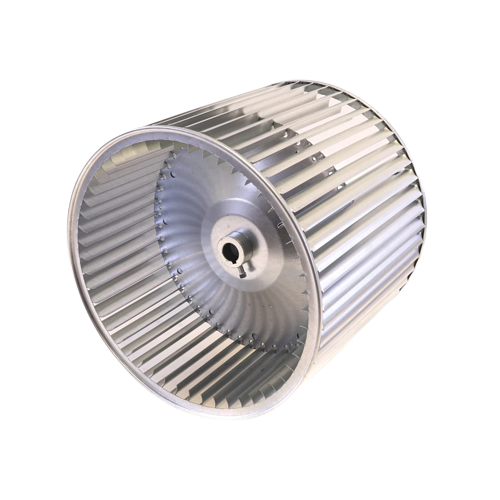

The Lau 00874616 (Model A15-12A) is a heavy-duty double inlet belt drive blower wheel engineered for reliable airflow performance in commercial and industrial HVAC air handling applications. With a 15-inch diameter and 12-5/8-inch width, this wheel delivers high-volume air movement suited for fan coil units, air handlers, and custom blower assemblies.
Key Features
- 15″ diameter x 12-5/8″ wide double inlet design for high-volume airflow
- 1″ bore with 1 set screw for secure shaft mounting
- 1/4″ x 1/2″ keyway for positive, slip-free power transmission
- 1,900 maximum RPM rating for dependable high-speed operation
- CW/CCW (clockwise and counterclockwise) rotation compatibility for flexible installation
- Belt drive configuration for adjustable speed control
- Double inlet construction maximizes airflow efficiency
Specifications
- SKU: 00874616
- Model: A15-12A
- Diameter: 15″
- Width: 12-5/8″
- Bore: 1″
- Set Screws: 1
- Keyway: 1/4″ x 1/2″
- Max RPM: 1,900
- Rotation: CW/CCW
- Inlet Type: Double Inlet
- Drive Type: Belt Drive
- Brand: Lau
Applications
- Commercial and industrial air handling units
- Fan coil unit replacements
- Custom blower assemblies
- HVAC retrofit and replacement projects
