Description

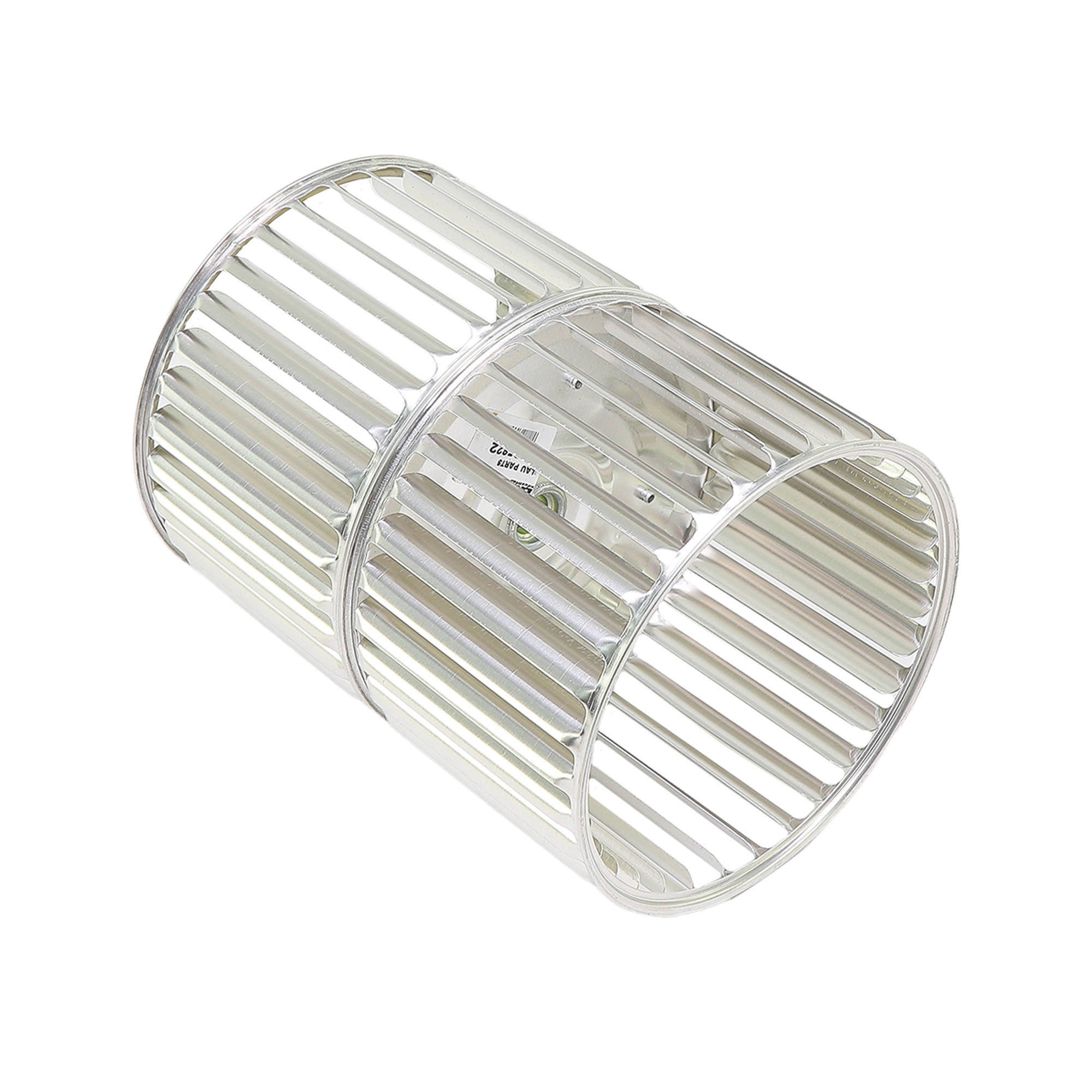

The Lau 02895822 is a precision-engineered direct drive blower wheel designed for reliable, efficient airflow in a wide range of HVAC applications. Built to Lau’s exacting standards, this double-inlet wheel delivers balanced, high-volume air movement while maintaining quiet, smooth operation.
Key Specifications
- Wheel Diameter: 5-3/4″
- Wheel Width: 7-5/8″
- Bore Size: 1/2″
- Maximum RPM: 3,450
- Rotation: Clockwise (CW)
- Inlet Type: Double Inlet
- Drive Type: Direct Drive
Features & Benefits
- Double-inlet design maximizes airflow efficiency by drawing air from both sides of the wheel
- Direct drive configuration eliminates belt and pulley losses for improved energy efficiency and reduced maintenance
- Clockwise rotation engineered for precise compatibility with matching blower housings and motor assemblies
- 1/2″ bore accommodates standard direct drive motor shafts for straightforward installation
- Rated up to 3,450 RPM for compatibility with common single-phase and three-phase direct drive motors
- Durable construction provides long service life in demanding HVAC environments
Typical Applications
- Residential and light commercial air handlers
- Fan coil units
- Furnace blower assemblies
- Ventilation and exhaust systems requiring compact, high-efficiency blower wheels
Important Notes
Always verify rotation direction and bore size against your existing motor and housing before installation. Confirm that your system’s operating RPM does not exceed the 3,450 RPM maximum rating.
