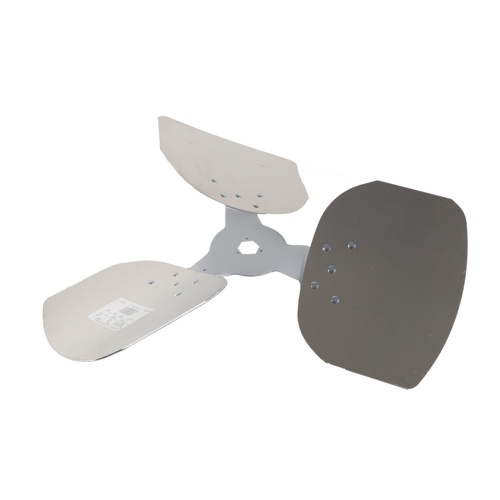

Lau 60557301 Heavy-Duty Condenser Style Fan Blade
Built for demanding HVAC applications, the Lau 60557301 is a heavy-duty condenser-style fan blade engineered to deliver reliable airflow performance in outdoor condensing units and similar equipment. With a 22-inch diameter and precision 27-degree blade pitch, this fan blade is optimized to move the right volume of air efficiently across condenser coils, helping maintain system performance and equipment longevity.
Key Features
- 22″ blade diameter for broad airflow coverage
- 27-degree blade pitch for optimized condenser airflow efficiency
- 3-blade configuration for balanced, smooth operation
- Clockwise (CW) rotation — confirm motor shaft rotation before installation
- Interchangeable hub design for flexible mounting compatibility across multiple unit configurations
- Heavy-duty construction built to withstand continuous outdoor HVAC operation
- Condenser-style design engineered for use in air-cooled condensing units
Application
The Lau 60557301 is ideal as a direct replacement or upgrade fan blade for residential and light commercial air-cooled condensing units. The interchangeable hub system simplifies installation and broadens compatibility, reducing the need for multiple SKUs across a service fleet.
Product Specifications
- Brand: Lau
- SKU: 60557301
- Blade Diameter: 22″
- Blade Pitch: 27 degrees
- Number of Blades: 3
- Rotation: Clockwise (CW)
- Hub Type: Interchangeable
- Duty Rating: Heavy Duty
- Style: Condenser
