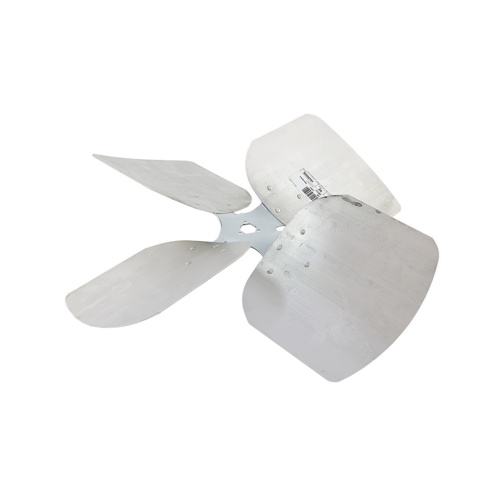

Lau 60559701 Heavy-Duty Condenser Style Fan Blade
The Lau 60559701 is a heavy-duty condenser style fan blade engineered for dependable airflow performance in demanding HVAC applications. Designed with a 24-inch diameter and a 27-degree blade pitch, this fan blade delivers the precise air movement required for efficient condenser coil heat rejection. The clockwise (CW) rotation configuration ensures compatibility with standard condenser fan motor setups, while the interchangeable hub design simplifies installation and replacement across a wide range of equipment.
Key Features
- 24″ blade diameter for broad air coverage and high-volume airflow
- 27-degree blade pitch optimized for condenser-style airflow performance
- 4-blade configuration balances efficiency and airflow capacity
- Clockwise (CW) rotation for standard condenser fan motor compatibility
- Interchangeable hub design allows easy installation and cross-application use
- Heavy-duty construction built to withstand continuous outdoor operation
- Condenser style blade profile engineered for heat rejection applications
Applications
- Residential and commercial air conditioning condensing units
- Heat pump outdoor units
- Packaged rooftop HVAC equipment
- Refrigeration condenser assemblies
Product Specifications
- Brand: Lau
- SKU: 60559701
- Blade Diameter: 24 inches
- Blade Pitch: 27 degrees
- Number of Blades: 4
- Rotation: Clockwise (CW)
- Hub Type: Interchangeable
- Duty Rating: Heavy Duty
- Style: Condenser
