Description
Overview

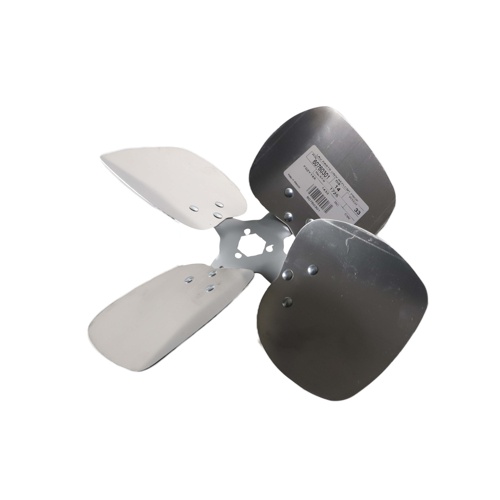

The Lau 60760301 is a heavy-duty condenser-style fan blade engineered for reliable airflow performance in demanding HVAC condensing unit applications. With a 14-inch diameter, 33-degree blade pitch, and four-blade configuration, this fan blade delivers efficient air movement across a wide range of commercial and residential condenser coil setups.
Key Features
- 14″ blade diameter for effective condenser airflow coverage
- 33° pitch angle optimized for high-efficiency air delivery
- 4-blade design balances airflow volume and motor load
- Clockwise (CW) rotation for standard condenser fan applications
- Interchangeable hub design for versatile motor shaft compatibility
- Heavy-duty construction built to withstand continuous outdoor operation
- Condenser style blade profile engineered for heat rejection efficiency
Specifications
- Manufacturer: Lau
- Part Number: 60760301
- Blade Diameter: 14 inches
- Blade Pitch: 33 degrees
- Number of Blades: 4
- Rotation: Clockwise (CW)
- Hub Type: Interchangeable
- Duty Rating: Heavy Duty
- Blade Style: Condenser
Application
Ideal for replacement or OEM use in residential and light commercial air conditioning condensing units. The interchangeable hub design simplifies installation across multiple motor shaft configurations, reducing downtime and stocking requirements for HVAC technicians and contractors.
