Description

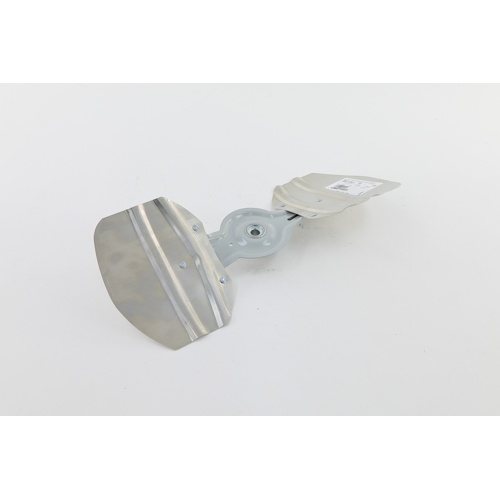

The Lau 60772501 is a heavy-duty condenser-style fan blade engineered for reliable, long-lasting performance in demanding HVAC applications. With an 18-inch diameter and a 28-degree pitch, this 2-blade assembly delivers efficient airflow optimized for condenser unit operation. The counter-clockwise (CCW) rotation and 1/2-inch bore on the intake side ensure straightforward, accurate installation on compatible condenser fan motors.
Key Features
- 18″ blade diameter for effective condenser airflow coverage
- 28° pitch angle optimized for high-efficiency air movement
- 2-blade condenser-style design
- Counter-clockwise (CCW) rotation
- 1/2″ bore located on the intake side for precise motor shaft fitment
- Heavy-duty construction for extended service life in harsh outdoor environments
- Condenser style blade profile engineered for HVAC condensing unit applications
Specifications
- Brand: Lau
- SKU: 60772501
- Blade Diameter: 18″
- Blade Pitch: 28°
- Number of Blades: 2
- Rotation: Counter-Clockwise (CCW)
- Bore Size: 1/2″
- Bore Location: Intake Side
- Duty Rating: Heavy Duty
- Blade Style: Condenser
Application
The Lau 60772501 is designed as a direct replacement or upgrade fan blade for residential and light commercial condenser units. Its heavy-duty build makes it well-suited for outdoor installations subject to continuous operation and variable weather conditions. Always verify motor shaft diameter, rotation direction, and blade diameter compatibility with your existing condenser unit before installation.
