Description

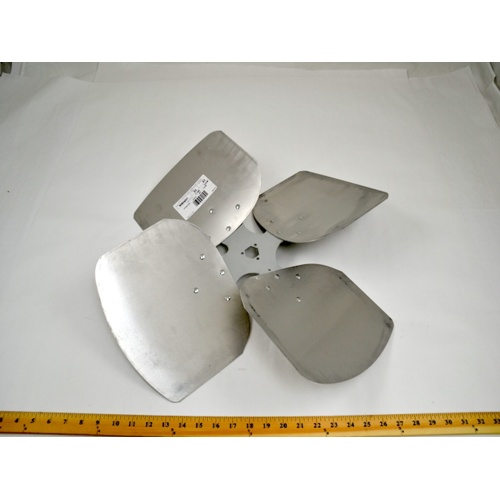

The Lau 60804201 is a heavy-duty condenser-style fan blade engineered for reliable, high-efficiency airflow in commercial and residential HVAC condensing unit applications. Featuring an interchangeable hub design, this blade offers flexible installation compatibility across a wide range of condenser fan motor shafts, reducing the need for multiple SKUs on the job.
Key Features
- 22″ blade diameter for optimized condenser airflow coverage
- 23° blade pitch for efficient air movement and balanced static pressure
- 4-blade configuration delivers consistent, uniform airflow distribution
- Counter-clockwise (CCW) rotation — verify motor rotation before installation
- Interchangeable hub design for broad motor shaft compatibility
- Heavy-duty construction built to withstand demanding outdoor condenser environments
- Condenser style blade profile engineered for heat rejection performance
Application
Ideal for replacement or OEM applications in air-cooled condensing units, heat pumps, and rooftop equipment. The interchangeable hub allows technicians to adapt the blade to various shaft diameters and keyway configurations, streamlining inventory and speeding up service calls.
Specifications
- Brand: Lau
- SKU: 60804201
- Blade Diameter: 22″
- Blade Pitch: 23°
- Number of Blades: 4
- Rotation: Counter-Clockwise (CCW)
- Hub Type: Interchangeable
- Duty Rating: Heavy Duty
- Style: Condenser
