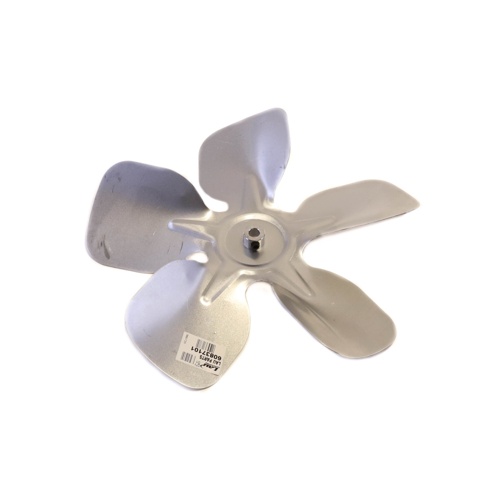

Lau 60837101 Aluminum Fan Blade Overview
The Lau 60837101 is a precision-engineered aluminum fan blade designed for demanding HVAC and ventilation applications. Built with a fixed hub and a robust 5-blade configuration, this fan blade delivers consistent, reliable airflow in a compact 10-inch diameter footprint. Its counter-clockwise (CCW) rotation and optimized 31-degree blade pitch work together to maximize airflow efficiency while keeping noise and energy consumption to a minimum.
Key Specifications
- Blade Diameter: 10 inches
- Blade Pitch: 31 degrees
- Number of Blades: 5
- Rotation Direction: Counter-Clockwise (CCW)
- Bore Size: 5/16 inch
- Maximum Speed: 2,400 RPM
- Hub Type: Aluminum Fixed Hub
- Blade Material: Aluminum
Features & Benefits
- Aluminum construction provides excellent strength-to-weight ratio and corrosion resistance for long service life
- Fixed hub design ensures secure, vibration-free mounting for stable operation at high speeds
- 31-degree blade pitch optimizes static pressure and airflow volume for efficient ventilation performance
- 5-blade design delivers smooth, balanced airflow with reduced turbulence and noise
- CCW rotation suits a wide range of condenser fan motor configurations
- 2,400 RPM maximum speed rating supports high-performance HVAC system demands
- 5/16-inch bore accommodates standard motor shaft sizes for straightforward installation
Typical Applications
- Residential and light commercial condensing units
- HVAC evaporator and condenser fan assemblies
- Refrigeration equipment cooling fans
- General ventilation and air-handling systems
