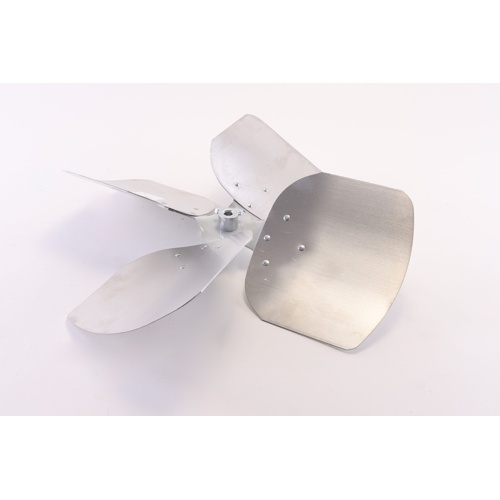

Lau 60841201 Heavy-Duty Condenser Style Fan Blade
The Lau 60841201 is a heavy-duty condenser style fan blade engineered for dependable, high-efficiency airflow in commercial and residential HVAC condensing units. Built to Lau’s exacting standards, this blade delivers consistent performance in demanding outdoor environments where reliable heat rejection is critical to system efficiency and longevity.
Key Specifications
- Diameter: 22″
- Blade Pitch: 30 degrees
- Number of Blades: 4
- Rotation: Clockwise (CW) — viewed from discharge side
- Bore Size: 1/2″
- Bore Location: Discharge side
- Duty Rating: Heavy Duty
- Style: Condenser Fan Blade
Product Features & Benefits
- Heavy-duty construction for long service life in harsh outdoor conditions
- 30-degree blade pitch optimized for maximum condenser airflow and heat transfer efficiency
- 4-blade design provides balanced airflow with reduced vibration and noise
- Clockwise (CW) rotation ensures correct airflow direction for condenser discharge applications
- 1/2″ bore on the discharge side for straightforward motor shaft mounting
- Condenser-style profile designed to move high volumes of air across condenser coils
- Engineered for direct replacement in a wide range of condensing units
Typical Applications
- Residential and light commercial air conditioning condensing units
- Replacement fan blade for condenser section upgrades or repairs
- OEM and aftermarket HVAC equipment service
