Description
Product Overview

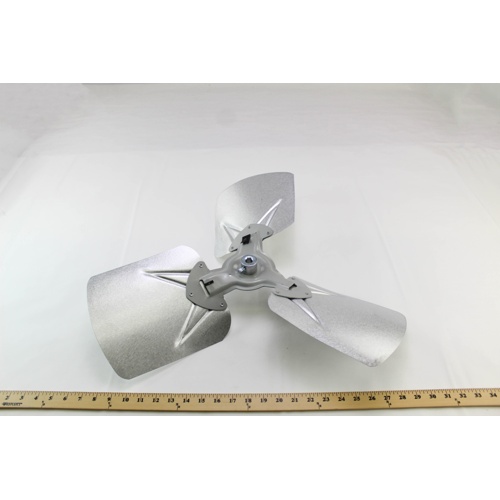

The Lau 6128170001 is a heavy-duty steel condenser fan blade engineered for reliable, high-efficiency airflow in commercial and residential HVAC condensing units. With a 24-inch diameter, 28-degree blade pitch, and counter-clockwise (CCW) rotation, this three-blade assembly is designed to move maximum air volume while minimizing motor load — keeping your condenser operating at peak performance.
Key Features
- 24″ blade diameter for broad air coverage
- 28-degree pitch optimized for efficient airflow and low resistance
- 3-blade configuration for balanced, smooth operation
- Counter-clockwise (CCW) rotation — intake side orientation
- 1/2″ bore sized for intake-side motor shaft mounting
- Steel construction for long-lasting durability in demanding outdoor environments
Application
The Lau 6128170001 is a direct-replacement condenser fan blade suitable for a wide range of rooftop units, split-system condensers, and commercial refrigeration equipment requiring a 24″ CCW steel blade. Always verify rotation direction, bore size, and blade pitch against your OEM specifications before installation.
Specifications
- Brand: Lau
- SKU: 6128170001
- Blade Diameter: 24″
- Blade Pitch: 28 degrees
- Number of Blades: 3
- Rotation: Counter-Clockwise (CCW)
- Bore Size: 1/2″
- Bore Location: Intake Side
- Blade Material: Steel
