Description
Product Overview

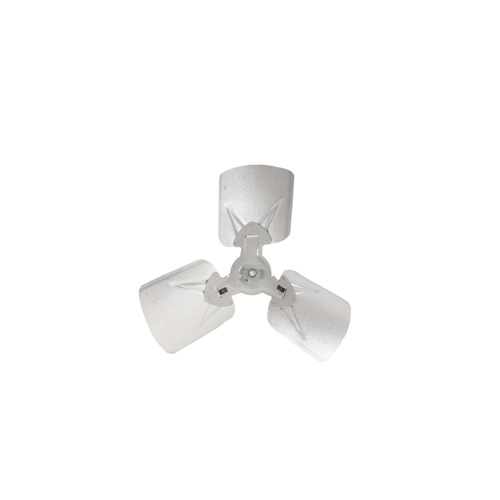

The Lau 6128310001 is a heavy-duty steel condenser fan blade engineered for reliable, efficient airflow in commercial and residential HVAC condensing units. With a 22-inch diameter and precision 30-degree blade pitch, this three-blade assembly delivers optimized air movement across condenser coils, helping maintain system efficiency and protecting compressor life.
Key Features
- 22″ blade diameter for broad, high-volume airflow coverage
- 30-degree blade pitch for optimized static pressure and CFM performance
- 3-blade configuration balances airflow efficiency with smooth, low-vibration operation
- Counter-clockwise (CCW) rotation — confirm motor shaft rotation before installation
- 1/2″ bore located on the intake side for proper motor shaft fitment
- Steel construction provides long-lasting durability in outdoor condensing unit environments
Application
Designed as a direct replacement or upgrade fan blade for condenser units in split-system air conditioners, heat pumps, and commercial refrigeration equipment. The intake-side bore placement ensures correct airflow direction when installed per manufacturer specifications.
Specifications
- SKU: 6128310001
- Brand: Lau
- Blade Diameter: 22″
- Blade Pitch: 30 degrees
- Number of Blades: 3
- Rotation: Counter-Clockwise (CCW)
- Bore Size: 1/2″
- Bore Location: Intake Side
- Blade Material: Steel
