Description

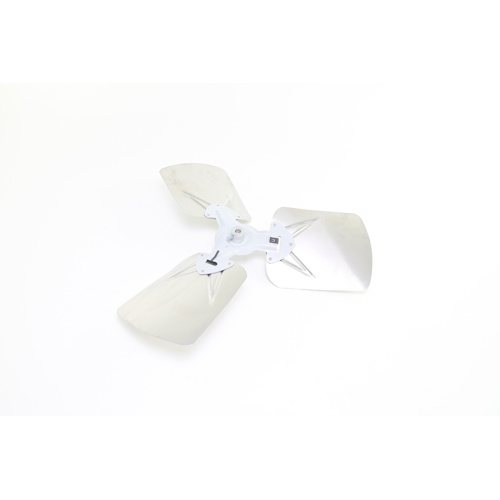

The Lau 6131430001 is a heavy-duty, condenser-style fan blade engineered for reliable airflow performance in commercial and residential HVAC condensing units. Designed to deliver consistent, efficient air movement, this blade is a trusted replacement or OEM-spec component for condenser fan applications.
Key Specifications
- Diameter: 24″
- Blade Pitch: 22 degrees
- Number of Blades: 3
- Rotation: Clockwise (CW)
- Bore Size: 1/2″ (located on intake side)
- Style: Condenser
- Duty Rating: Heavy Duty
Product Highlights
- Heavy-duty construction ensures long service life in demanding outdoor condenser environments
- 22-degree blade pitch optimized for efficient condenser airflow and heat rejection
- Clockwise (CW) rotation for correct airflow direction on compatible condenser fan motors
- 1/2″ bore on the intake side for secure, precise motor shaft mounting
- Condenser-style design delivers high static pressure performance suited for rooftop and ground-level condensing units
- 3-blade configuration balances airflow volume with motor load efficiency
Application
The Lau 6131430001 fan blade is ideal for use in air-cooled condensing units, heat pumps, and packaged HVAC systems requiring a durable, direct-replacement condenser fan blade. Its heavy-duty rating makes it well suited for continuous-duty outdoor operation across a wide range of commercial and residential systems.
