Description

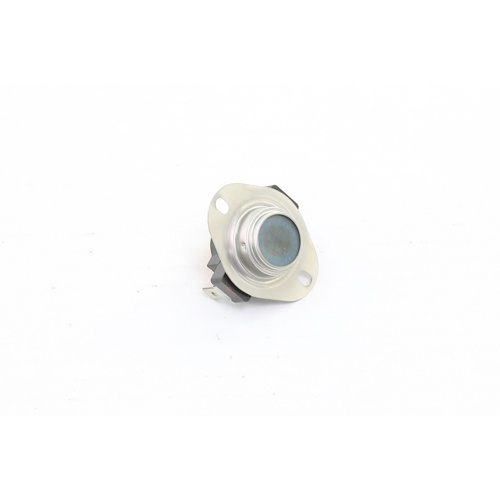

The Lennox 10M61 is an OEM replacement high limit switch designed to protect your furnace from dangerous overheating conditions. Carrying the L180-40F designation, this limit switch is factory-set to open (trip) at 180°F and automatically resets once the temperature drops by 40°F to 140°F, restoring normal furnace operation.
How It Works
The high limit switch continuously monitors the temperature inside the furnace heat exchanger plenum. If temperatures rise beyond the 180°F setpoint — due to restricted airflow, a dirty filter, blocked vents, or a blower failure — the switch opens the control circuit, shutting down the burners to prevent heat exchanger damage, fire hazard, or equipment failure. Once the plenum cools to the reset temperature of 140°F, the switch automatically closes and allows normal operation to resume.
Key Specifications
- OEM Part Number: 10M61
- Switch Designation: L180-40F
- Open (Trip) Temperature: 180°F
- Differential: 40°F
- Reset Temperature: 140°F (automatic reset)
- Compatible Brand: Lennox
- Application: Furnace high limit / overheat protection
Features & Benefits
- Direct OEM replacement for Lennox furnaces — ensures proper fit and function
- Automatic reset design restores operation once safe temperatures are reached
- Protects heat exchanger and furnace components from thermal damage
- Helps maintain system safety and extend equipment service life
- Essential component for routine furnace maintenance and service calls
Application
The Lennox 10M61 L180-40F limit switch is intended for use in Lennox gas furnaces and heating systems requiring a 180°F open setpoint with a 40°F differential. Always verify compatibility with your specific furnace model before installation.
