Description

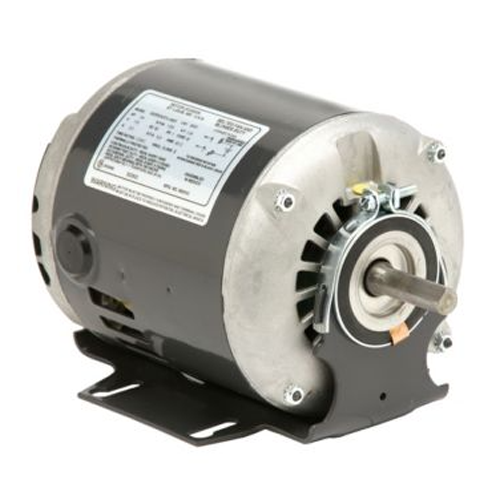

The Lennox 13E11 blower motor is a genuine OEM Nidec 840CV split‑phase, belt‑drive motor rated at 1/4 horsepower, operating at 115 VAC, 1725 RPM, and drawing approximately 4.8–5.3 amps. It’s designed for direct replacement in compatible Lennox HVAC units requiring horizontal belt-driven air delivery.
Specifications:
- Product Depth: 13 IN
- Product Height: 9.125 IN
- Product Width: 9.625 IN
- Horsepower: 1/4 HP
- Diameter: 5.5 IN
- RPM Range: 1725
- Gross Weight: 14.5 LB
- Amperage (AMPs): 5.3A
- Hertz: 60 hz
- Weight: 14 LBS
- Warranty: 1 Year
- Core Product: No
- Motor Type: Split Phase
- RPM: 1725 RPM
- Motor HP: 1/4 HP
- Number of Speeds: 1 Speed
- Frame Size: 48
- Motor Mounting Position: Horizontal
- Motor Mounting Type: Cradle Base
- Motor Voltage: 115 VAC 1 Ph 60 Hz
- Shaft Size: 1/2 x 1.5 IN
- Rotation: Reversible
- Bearing Type: Ball
- Motor Type: Blower
- Speed: Single
- Frame Size: 48 Frame
