Lennox 13P95 Fan and Limit Controller

Name: Lennox 13P95 Fan and Limit Controller
Brand: Lennox
SKU: 13P95
Price: 269.33 USD
Availability: InStock

BRAND: Lennox SKU: 13P95

$269.33

MSRP: $309.73

You save 15%

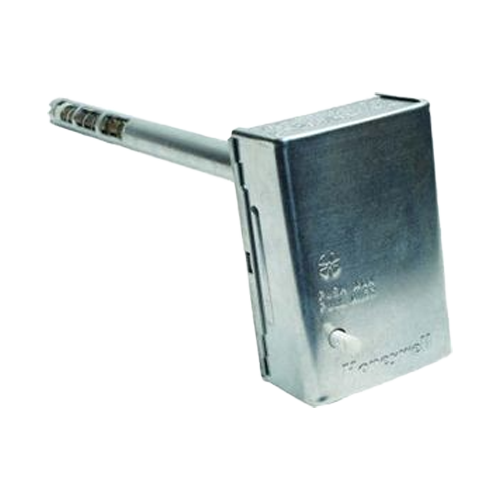

Lennox 13P95 Fan and Limit Controller

Ships Tomorrow

Availability:

20 In Stock

Description

Optimize both safety and airflow in forced-air heating systems with the Lennox 13P95 fan/limit controller — a trusted OEM upgrade in furnaces, rooftop units, and packaged heaters.

Features:

Three wiring terminal options available for easy installation.
Push-in receptacles for stripped wire.
Female receptacles for 1/4 inch male flag connectors.
Auxiliary screw terminals.
Field adjustable fan and high limit settings.
L4064B,W, and R models have a manual fan switch that overrides the fan control to keep the fan running continuously.
TRADELINE models with mounting adapters for easy installation and strain relief bushings to protect wiring from field abuse.
Temperature Ratings (F): Maximum Ambient- At switch: 190 F: At element: 350 F; High Limit- 100 F to 250 F; Fan-on- 65 F to 215 F; Fan-off- 50 F to 200 F; High Limit Stop- 200 F; Fan-on Stop- 125 F; Fan-off Stop- 100 F

Additional information

Product Type	Fan & limit controller
Switch Type	SPDT
Voltage Rating	120/240 VAC
Element Insertion Length	8 in
Temperature Ratings (°F)	Max ambient 190 (switch) / 350 (element); High limit 100–250; Fan-on 65–215; Fan-off 50–200
Stops (°F)	High limit stop 200; Fan-on stop 125; Fan-off stop 100
Contact Ratings	Fan: 14A FLA @120 / 7A @240; 84A LRA @120 / 42A @240. Limit: 8A FLA @120 / 4A @240; 48A LRA @120 / 24A @240
Pilot Duty Rating	0.25A @ 0.25–12 VDC; 2A @ 24 VAC
Manual Fan Switch	Yes
Weight	1.2 lb
