Description

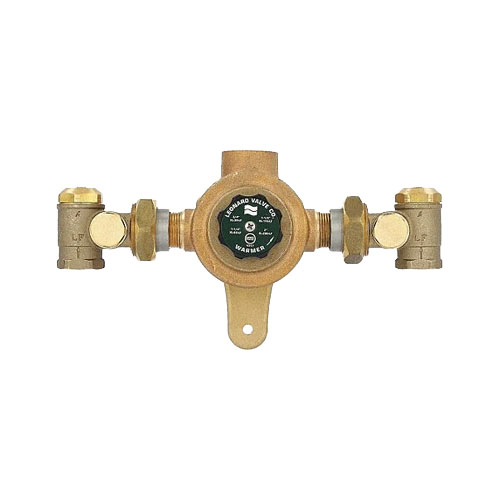

The Leonard Valve LV-982-LF-RF is a 1″ inlet by 1-1/4″ outlet lead-free thermostatic mixing valve engineered for reliable, precise hot water temperature regulation in commercial and institutional plumbing systems. Designed to protect building occupants from scalding while simultaneously guarding against Legionella growth, this valve automatically blends hot and cold water supplies to deliver a consistent, safe mixed-water temperature at the point of use or point of distribution.
Key Features
- Lead-free (LF) construction for compliance with NSF/ANSI 61 and Safe Drinking Water Act requirements
- 1″ hot/cold inlet connections with 1-1/4″ mixed outlet for high-flow commercial applications
- Thermostatic mixing element automatically compensates for fluctuations in supply pressure and temperature
- Fail-safe design shuts off flow if cold water supply is interrupted, preventing scalding
- Durable brass body construction for long service life in demanding environments
- Field-adjustable mixed outlet temperature setting
- Suitable for use in hospitals, schools, hotels, multi-family housing, and other commercial facilities
Applications
- Central hot water tempering for large commercial and institutional buildings
- Shower and lavatory temperature control
- Domestic hot water recirculation systems
- Compliance with ASSE 1017 and local plumbing code requirements for tempered water delivery
Product Specifications
- Brand: Leonard Valve
- Model / SKU: LV-982-LF-RF
- Inlet Size: 1″
- Outlet Size: 1-1/4″
- Body Material: Lead-Free Brass
- Valve Type: Thermostatic Mixing Valve
- Compliance: Lead-Free (LF)
